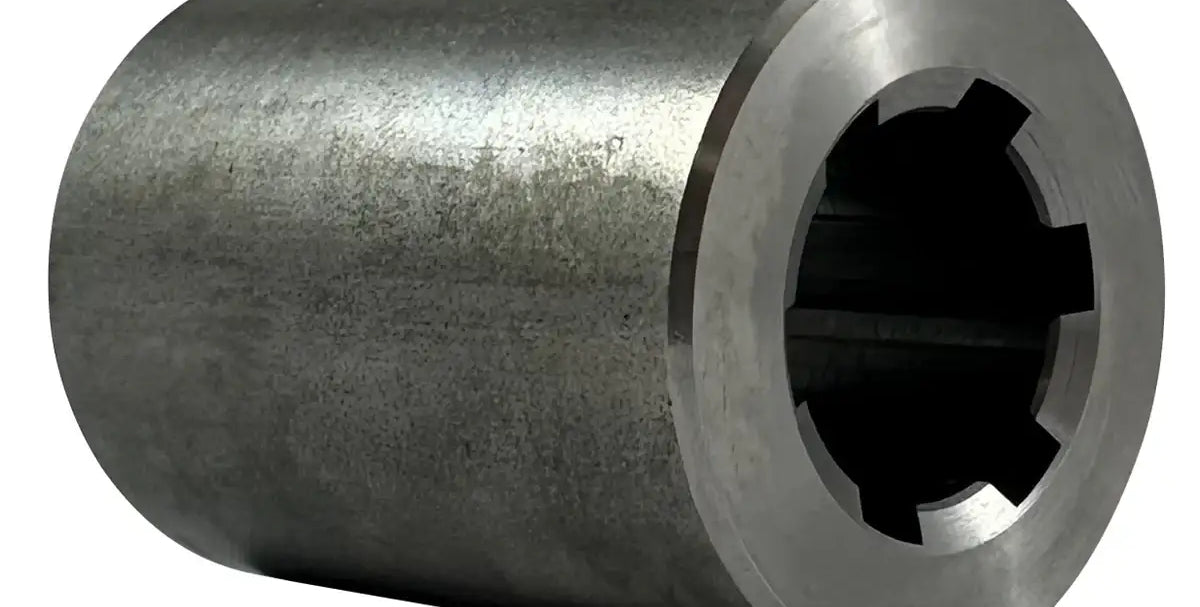

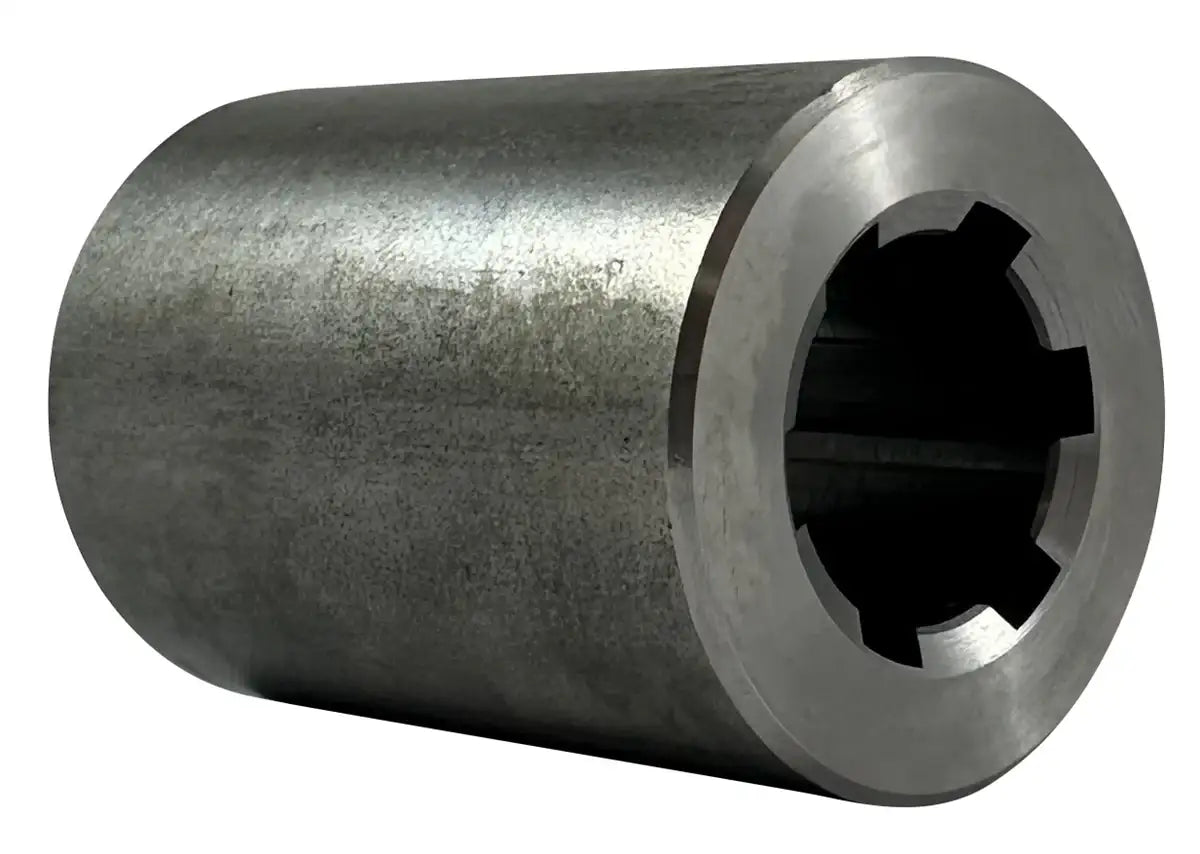

6 Spline Hub for 20mm Splined Shaft - C45 Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 64830500-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
6 Spline Hub for 20mm Splined Shaft - C45 Steel Features
6 Spline Hub for 20mm Splined Shaft - C45 Steel Specifications
Our premium 20mm spline hub, equipped with 6 splines, is precisely machined from high-strength C45 steel, designed to deliver maximum torque transmission with precise accuracy. Crafted to DIN ISO 14 standards, this hub ensures excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various applications, such as coupling two shafts together or providing a mounting surface for components. For more information or to request a quote on our top-quality C45 steel 20mm splined shaft, please contact our customer service team, and we will gladly assist you!
20mm Splined Shaft Hub Dimensions
- Part Number: 64830500
- Material: C45 Steel
- Profile Description: KN 16 X 20
- Number of Keyways: 6
- Dimension (D): 20mm
- Dimension (d): 16mm
- Dimension (b): 4mm
- Dimension (A): 32mm
- Length: 45mm
- Weight: 0.20KG
- Part Number: 64830500
- Material: C45 Steel
- Profile Description: KN 16 X 20
- Number of Keyways: 6
- Dimension (D): 20mm
- Dimension (d): 16mm
- Dimension (b): 4mm
- Dimension (A): 32mm
- Length: 45mm
- Weight: 0.20KG
