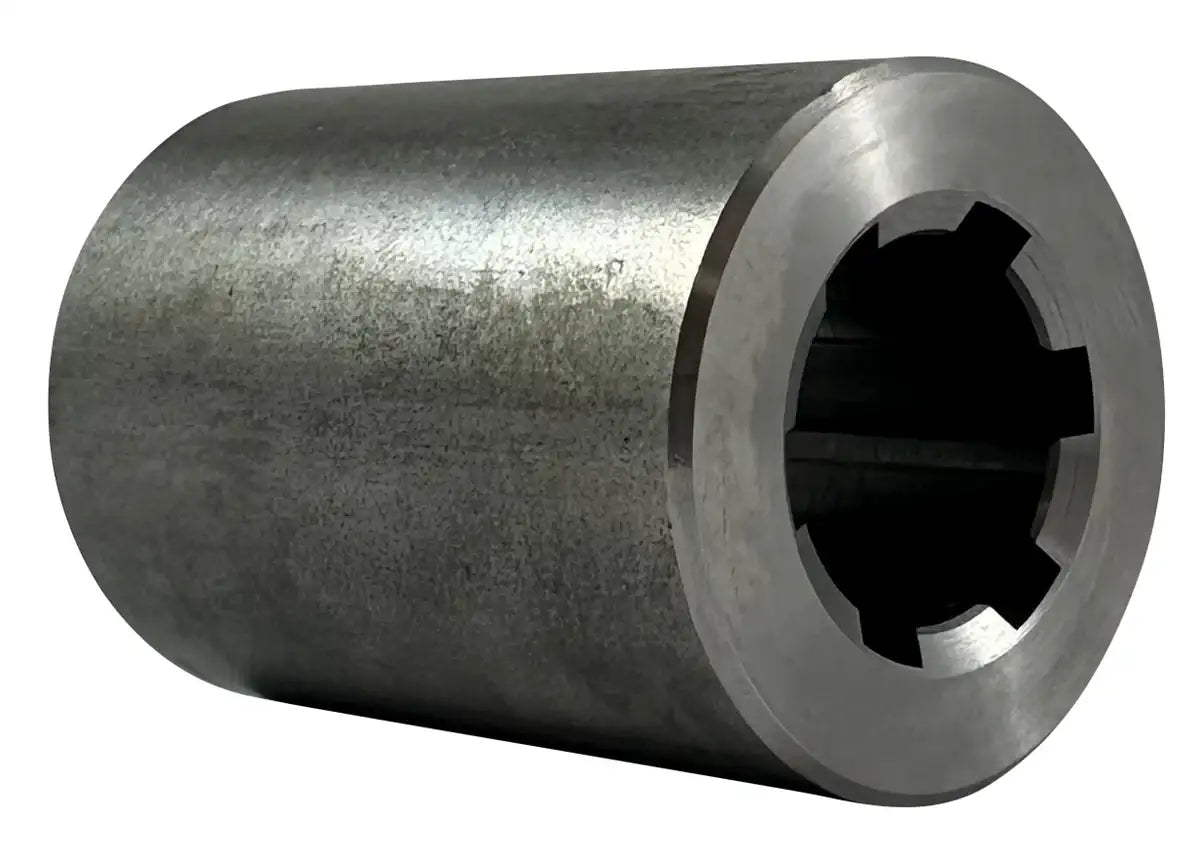

Our top-quality 16mm spline hub, featuring 6 splines, is precision machined from high-strength C45 steel to ensure maximum torque transmission with precise accuracy. This hub is dimensionally crafted to DIN ISO 14 standards, providing excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various purposes, such as coupling two shafts together or providing a surface for mounting components. For more information or to request a quote on our premium C45 steel 16mm splined shaft, please contact our customer service team, and we will be happy to assist you!

16mm Splined Shaft Hub Dimensions

• Part Number: 64830400
• Material: C45 Steel
• Profile Description: KN 13 X 16
• Number of Keyways: 6
• Dimension (D): 16mm
• Dimension (d): 13mm
• Dimension (b): 3.5mm
• Dimension (A): 28mm
• Length: 45mm
• Weight: 0.16KG
