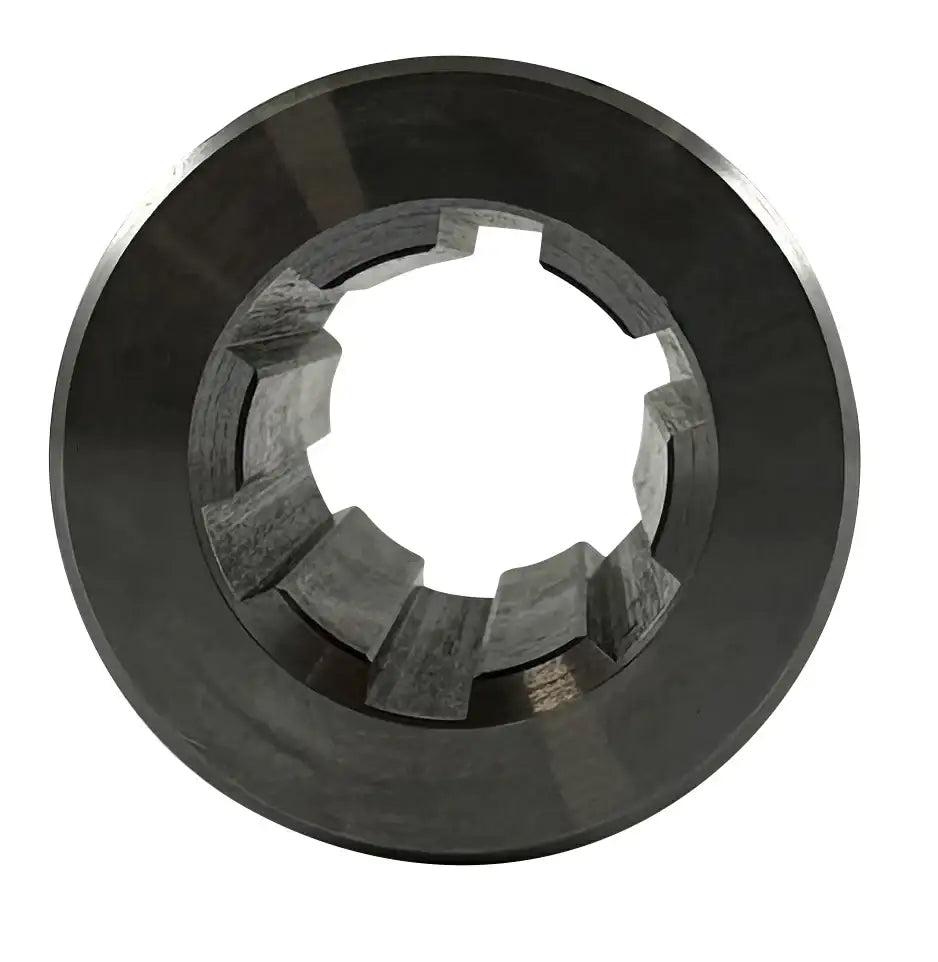

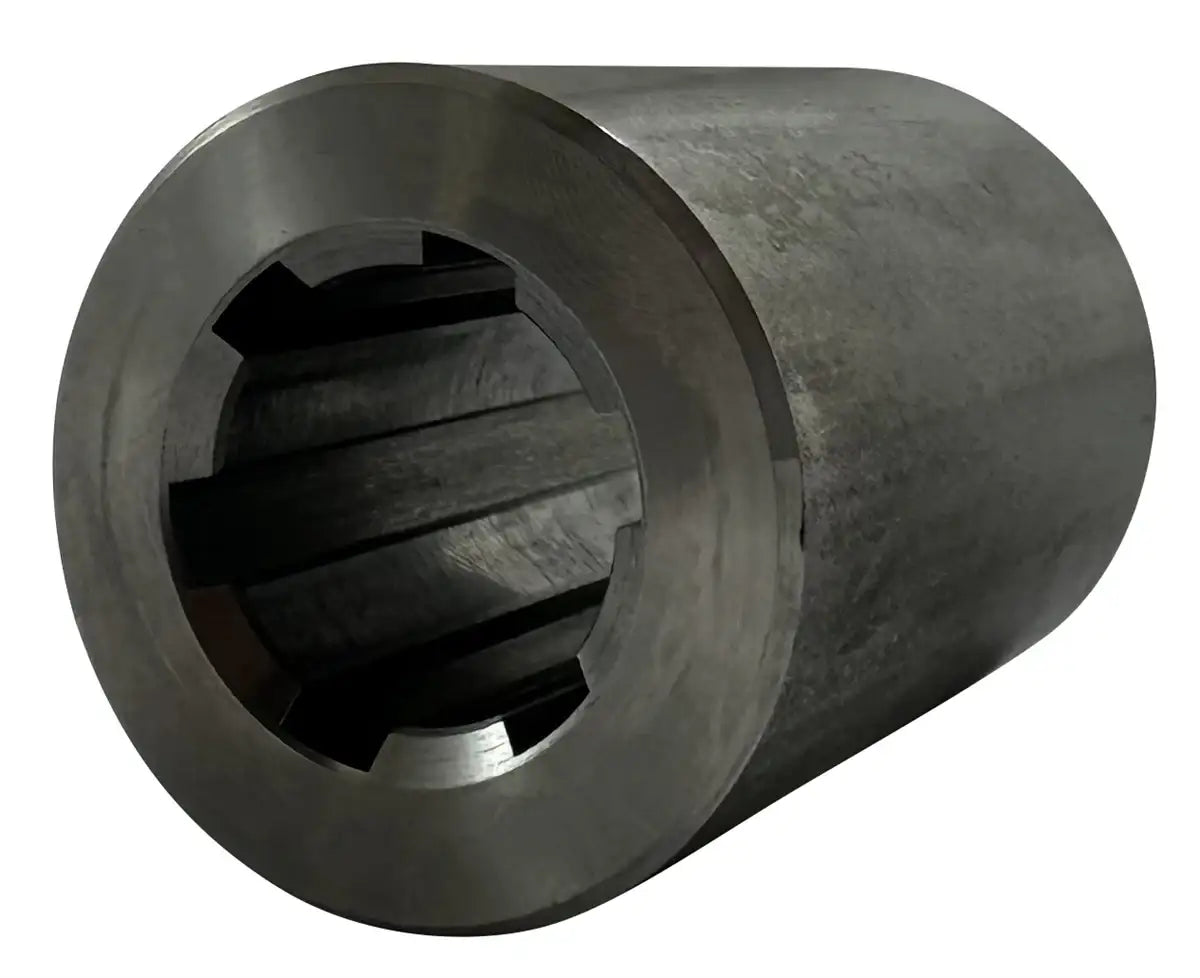

6 Spline Hub for 14mm Splined Shaft - C45 Steel

Alternative Views:

Our Price: $44.99

Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64830200-HUB

Qty:

Description

Technical Specs

Our top-of-the-line 14mm spline hub with 6-splines is precision machined from high-strength C45 steel and is designed for maximum torque transmission with precise accuracy! This 6-spline hub for 14mm splined shafting is dimensionally made per DIN ISO 14 standards for superb fitment and universality with other brands. Spline hubs are placed onto splined shafts for various reasons, such as coupling two shafts together, providing a surface to mount things to, and more! For additional information or to get a quote on our premium C45 steel 14mm splined shaft, contact our customer service team, and we will gladly assist you!

14mm Splined Shaft Hub Dimensions

Part Number: 64830200
Material: C45 Steel
Profile Description: KN 11 X 14
Number of Keyways: 6
Dimension (D): 14mm
Dimension (d): 11mm
Dimension (b): 3mm
Dimension (A): 20mm
Length: 40mm
Weight: 0.06 KG
