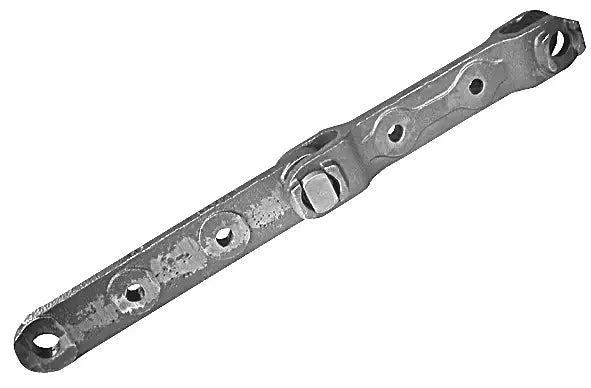

5430 Chain (Bar Type)
5430 Chain (Bar Type)
Note:
Custom Cut to Length Chain Also Available
Product Code: 5430-CHAIN
Couldn't load pickup availability
Other Customers Viewed
This 5430 chain is considered a wash box chain and features an ultimate strength of 105,800 LBS. Wash box chain is primarily used in the ming industry and coal preparation. Due to the highly abrasive application this chain is manufactured to be extremely resistant to the corrosion caused by the sulfur exposer and wet coal washers, it uses high quality alloy steel and heat treated components to ensure strength as well as durability. For more information on 5430 wash box chain or to get a quote please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Chain Size: 5430 Pitch (A): 12.250" Bar Width (B): 2.500" Bar Thickness (C): 1.250" Pin Diameter (D): 1.250" Pin End to Center Line (E): 1.280" Pin Heat to Center Line (F): 1.590" Recommended Working Load: 17,600 LBS Average Ultimate Strength: 105,800 LBS Chain Type: B Chain Weight: 11.2 LBS/ FT
Email:
Feature
Premium Wash Box Chain Extremely Heavy Duty Ultra High Strength High Performance Extremely Corrosion Resistant
Chain Size: 5430 Pitch (A): 12.250" Bar Width (B): 2.500" Bar Thickness (C): 1.250" Pin Diameter (D): 1.250" Pin End to Center Line (E): 1.280" Pin Heat to Center Line (F): 1.590" Recommended Working Load: 17,600 LBS Average Ultimate Strength: 105,800 LBS Chain Type: B Chain Weight: 11.2 LBS/ FT
