5410 Chain (Bar Type)

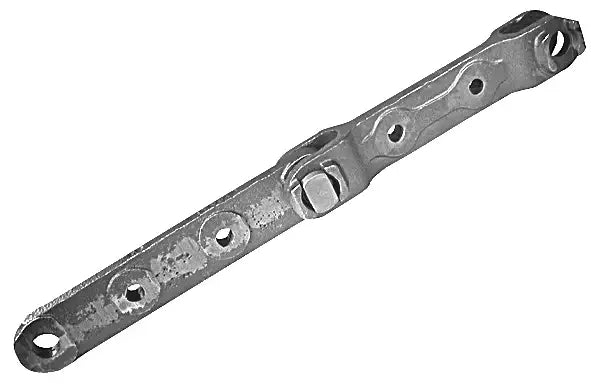

5410 Chain USA 5410 Wash Box Chain
5410 Chain



Availability: Normally In-Stock
Product Code: 5410-CHAIN
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

This 5410 chain is considered a wash box chain and features an ultimate strength of 115,300 LBS. Wash box chain is primarily used in the ming industry and coal preparation. Due to the highly abrasive application this chain is manufactured to be extremely resistant to the corrosion caused by the sulfur exposer and wet coal washers, it uses high quality alloy steel and heat treated components to ensure strength as well as durability. For more information on 5410 wash box chain or to get a quote please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: 5410
  • Pitch (A): 12.000"
  • Bar Width (B): 2.500"
  • Bar Thickness (C): 0.938"
  • Pin Diameter (D): 1.000"
  • Pin End to Center Line (E): 1.000"
  • Pin Heat to Center Line (F): 1.310"
  • Recommended Working Load: 19,200 LBS
  • Average Ultimate Strength: 115,300 LBS
  • Chain Type: B
  • Chain Weight: 9.6 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • Premium Wash Box Chain
    • Extremely Heavy Duty
    • Ultra High Strength
    • High Performance
    • Extremely Corrosion Resistant

Accessories
K-12000 Wash Box Chain Attachment S-12250 Wash Box Chain Attachment
K-12000 Wash Box Chain Attachment S-12250 Wash Box Chain Attachment
