38mm Spline Shaft 8-Splines C45 Material - 1000mm
38mm Spline Shaft 8-Splines C45 Material - 1000mm
Note:
Custom Cut to Length Chain Also Available
Regular price
$408.99
$408.99
Unit price
per
In Stock
On Sale
Sold out
Product Code: 64840800-SHAFT
In Stock
Couldn't load pickup availability
Other Customers Viewed

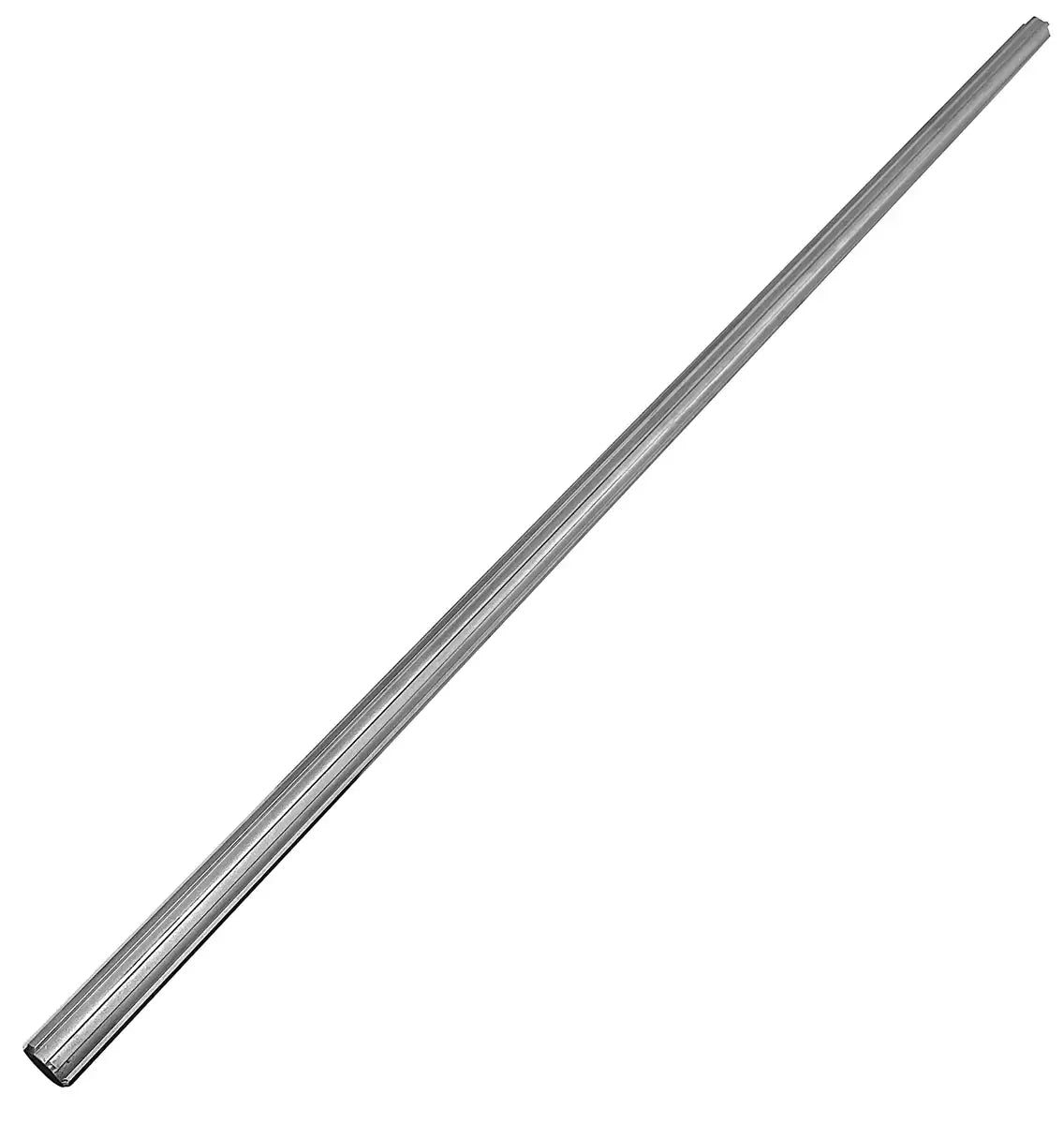

Our premium 38mm spline shaft with 8 splines is precisely crafted from high-quality C45 steel and pre-cut to 1000mm in length. Manufactured according to DIN ISO 14 Standards, this 38mm spline shaft provides excellent torque transmission and alignment, making it ideal for use in industrial machinery, agricultural equipment, and drive shafts. We also offer a wide range of compatible components, including spline hubs, collars, and clamps, for a seamless installation process. For additional information or a quote on our precision C45 steel 38mm spline shaft with 8 splines in a 1000mm length, contact our customer service team, and we will gladly assist you!

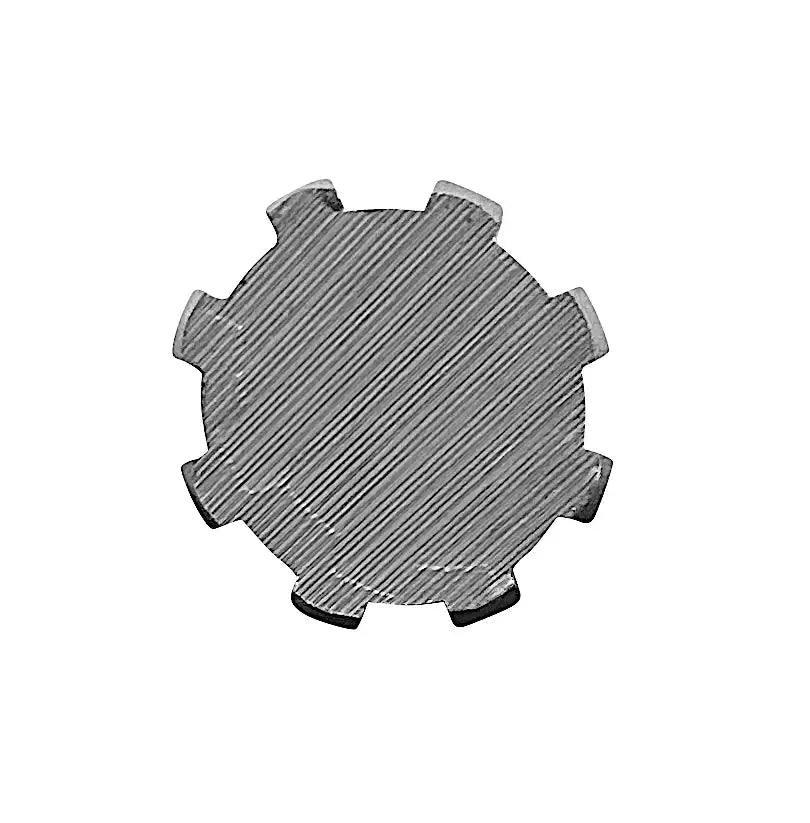

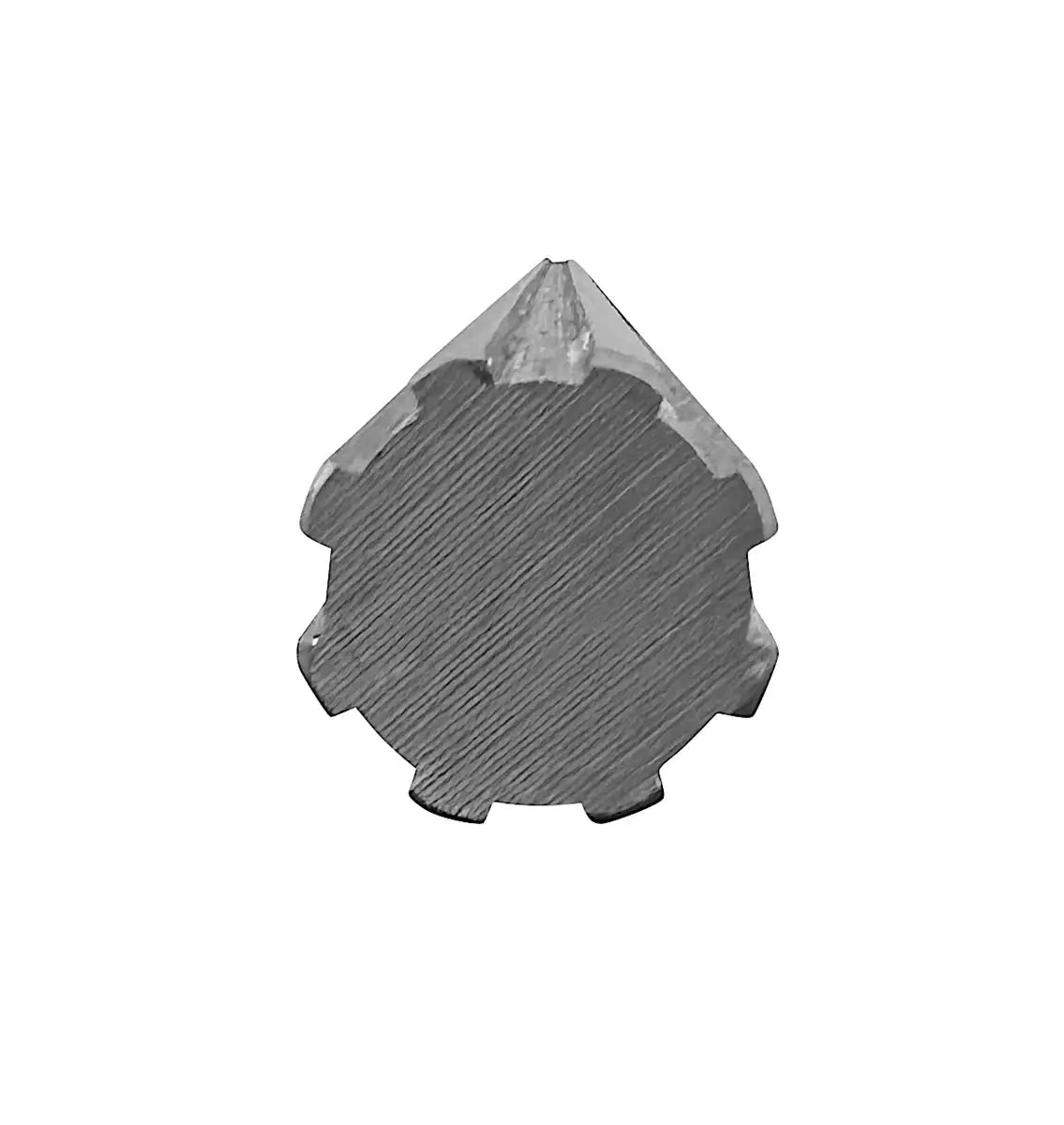

38mm Spline Shaft With 8-Splines Dimensions
- Shaft Diameter (D): 38mm
- Amount of Splines: 8
- Dimension (d): 32mm
- Dimension (b): 6mm
- Length: 1000mm
- Material: C45
- Weight: 7.433 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
Feature
- High Precision 38mm Splined Shaft
- Features 8-Splines
- Made From C45 Steel Material
- Cut to a 1000mm Length
- Conforms to ISO DIN 14 Dimensions
- Shaft Diameter (D): 38mm
- Amount of Splines: 8
- Dimension (d): 32mm
- Dimension (b): 6mm
- Length: 1000mm
- Material: C45
- Weight: 7.433 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
