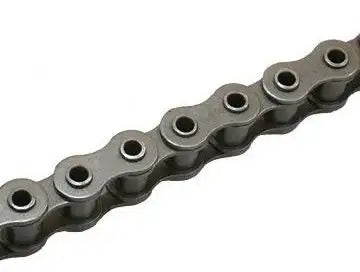

147 PF Chain (Hollow Pin)

147 PF Chain (Hollow Pin)

Note: Custom Cut to Length Chain Also Available
Product Code: 147-PF-CHAIN
View full details
Description
Specification
147 PF chain is a hollow pin roller chain that is manufactured to European Standards. Hollow pin roller chains offer great versatility due to the ability to insert cross rods into the chain without chain disassembly required. This 147 PF chain is manufactured using high quality, precision, and heat-treated components for maximum durability and working life. Besides 147 PF chain we also have a full line of high quality sprockets, bearings, motors, reducers, sensors, and more. For additional information or to get pricing and availability please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: 147 PF
  • Pitch (P): 25.40 mm
  • Roller Diameter (Dr): 15.88 mm
  • Inside Width (W): 17.02 mm
  • Plate Height (Hi): 21.08 mm
  • Pin Outside Diameter (Dp): 8.28 mm
  • Pin Inside Diameter (Df): 5.00 mm
  • Pin Width (A1): 33.90 mm
  • Overall Width (B): 38.80 mm
  • Average Ultimate Strength: 36.20 kN
  • Average Weight: 2.44 Kg/m

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Chain
  • Supplied With One Connecting Link Per Box
  • Extremely High-Strength and Durable
Featured image
  • Chain Size: 147 PF
  • Pitch (P): 25.40 mm
  • Roller Diameter (Dr): 15.88 mm
  • Inside Width (W): 17.02 mm
  • Plate Height (Hi): 21.08 mm
  • Pin Outside Diameter (Dp): 8.28 mm
  • Pin Inside Diameter (Df): 5.00 mm
  • Pin Width (A1): 33.90 mm
  • Overall Width (B): 38.80 mm
  • Average Ultimate Strength: 36.20 kN
  • Average Weight: 2.44 Kg/m
