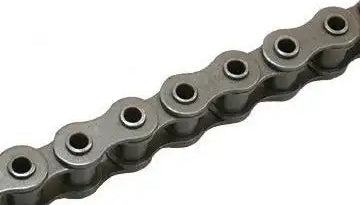

147 PF Chain (Hollow Pin)

Name: 147 PF Chain (Hollow Pin)
Brand: USA ROLLER CHAIN
SKU: 147-PF-CHAIN
Availability: InStock

Note: Se habla espanol

SKU: 147-PF-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

TRIPAK Deep Blue Chain Conditioner $14.79

147 PF Chain (Hollow Pin) Description/Features

147 PF Chain (Hollow Pin) Specifications

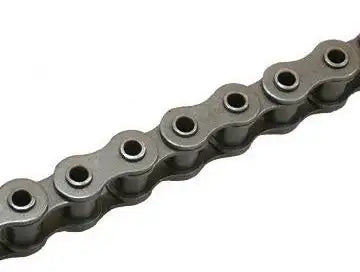

147 PF chain is a hollow pin roller chain that is manufactured to European Standards. Hollow pin roller chains offer great versatility due to the ability to insert cross rods into the chain without chain disassembly required. This 147 PF chain is manufactured using high quality, precision, and heat-treated components for maximum durability and working life. Besides 147 PF chain we also have a full line of high quality sprockets, bearings, motors, reducers, sensors, and more. For additional information or to get pricing and availability please contact us and we will be happy to assist you.

Dimensions:

Chain Size: 147 PF
Pitch (P): 25.40 mm
Roller Diameter (Dr): 15.88 mm
Inside Width (W): 17.02 mm
Plate Height (Hi): 21.08 mm
Pin Outside Diameter (Dp): 8.28 mm
Pin Inside Diameter (Df): 5.00 mm
Pin Width (A1): 33.90 mm
Overall Width (B): 38.80 mm
Average Ultimate Strength: 36.20 kN
Average Weight: 2.44 Kg/m
