10020TLH Coupling Sprocket Taper Bushed

10020 Coupling Half Sprocket
10020 Coupling Half Sprocket



Availability: Subject to availability
Product Code: 10020TLH-SPROCKET
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

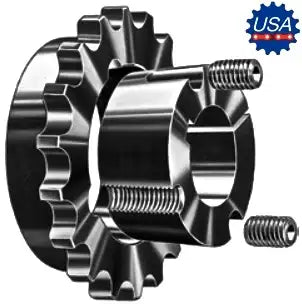

**Note: The sprocket in the picture shows the bushing going into the face of the sprocket. The sprocket you receive may accept the bushing through the hub side of the sprocket rather than the face. If you have any specific requirements or questions, please reach out to us, and we will be happy to assist!**

This 10020TLH coupling sprocket/ coupling half is manufactured using high-quality steel and features heat-treated hardened teeth for the maximum torque ability, performance, and durability. Additionally it meets all ANSI standards, has 20 teeth, and is bored to accept a
3535 bushing. For large quantities or more information on 10020 coupling sprockets please contact us and we will be happy to assist you!

Dimensions:


  • Sprocket #: 10020TLH
  • Bushing Type: 3535
  • Tooth Count: 20
  • Hub Diameter (A): 6.719"
  • Recommended Maximum RPM: 1800
  • Weight: 19 LBS

Phone: (407) 347-3519
Email:
sales@usarollerchain.com

See What All We Offer "
Here"!
About Us
Features
    • High Quality Sprocket
    • Has Hardened Teeth
    • Fully Meets ANSI Standards
    • Easy To Install
