10020 Coupling Half Sprocket

Power Transmission > Sprockets > Chain Coupling Sprockets > #100 Coupling Sprockets

10020TLH Coupling Sprocket Taper Bushed

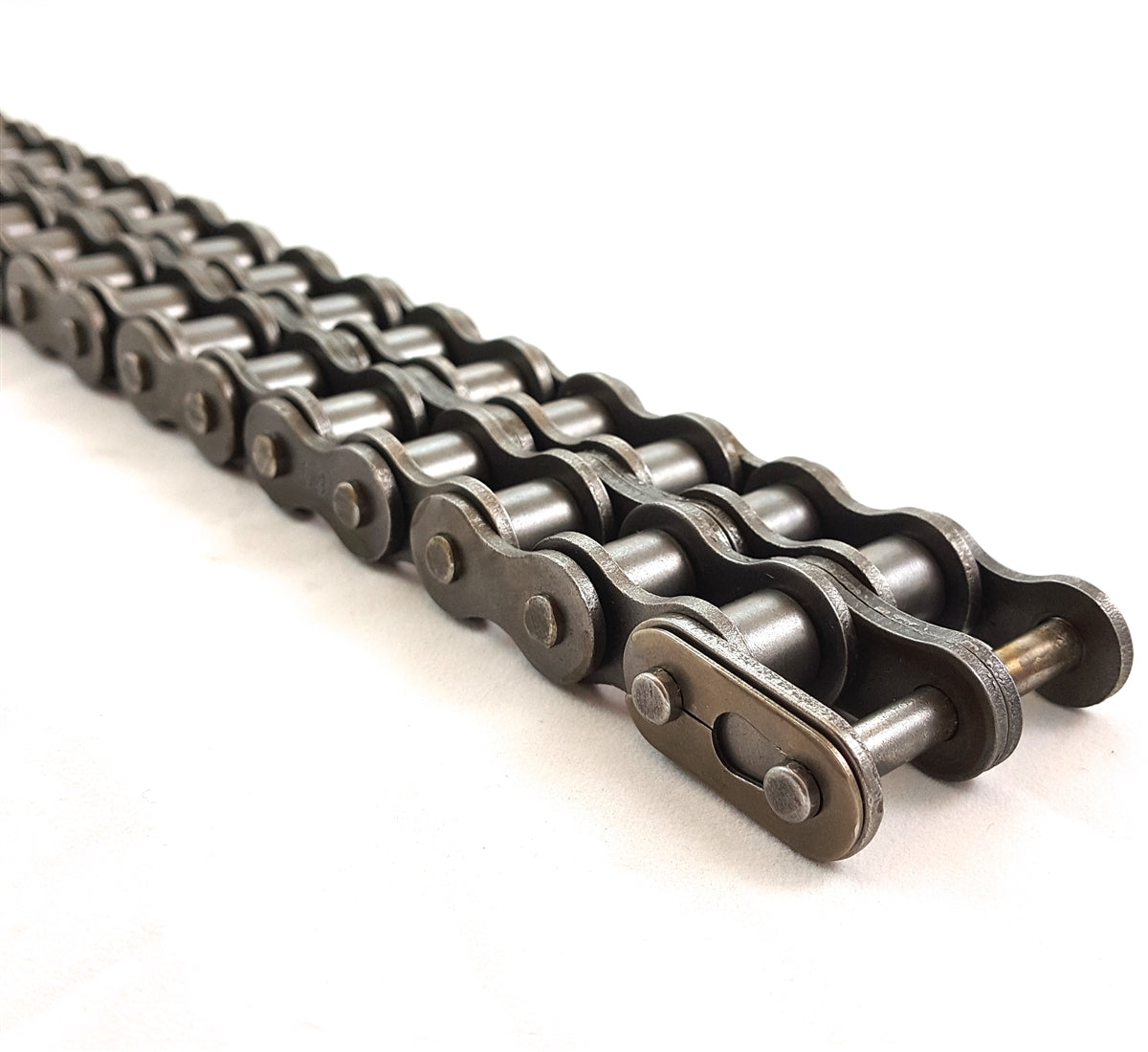

Note: Custom Cut to Length Chain Also Available
$314.99
SKU: 10020TLH-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714093187439" , "metafield_value":""}]
10020TLH Coupling Sprocket Taper Bushed Features
10020TLH Coupling Sprocket Taper Bushed Specifications

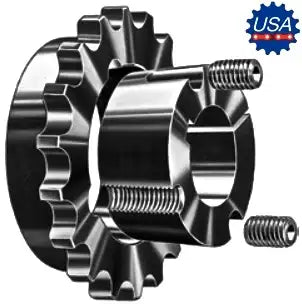

**Note: The sprocket in the picture shows the bushing going into the face of the sprocket. The sprocket you receive may accept the bushing through the hub side of the sprocket rather than the face. If you have any specific requirements or questions, please reach out to us, and we will be happy to assist!**

This 10020TLH coupling sprocket/ coupling half is manufactured using high-quality steel and features heat-treated hardened teeth for the maximum torque ability, performance, and durability. Additionally it meets all ANSI standards, has 20 teeth, and is bored to accept a 3535 bushing. For large quantities or more information on 10020 coupling sprockets please contact us and we will be happy to assist you!

Dimensions


10020TLH Coupling Sprocket Taper Bushed
  • Sprocket #: 10020TLH
  • Bushing Type: 3535
  • Tooth Count: 20
  • Hub Diameter (A): 6.719"
  • Recommended Maximum RPM: 1800
  • Weight: 19 LBS
  • Sprocket #: 10020TLH
  • Bushing Type: 3535
  • Tooth Count: 20
  • Hub Diameter (A): 6.719"
  • Recommended Maximum RPM: 1800
  • Weight: 19 LBS
