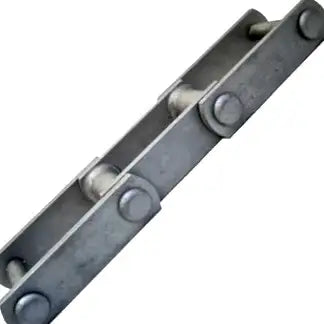

WHC150XHD Extra Heavy Duty Chain

WHC150XHD Extra Heavy Duty Chain

Note: Custom Cut to Length Chain Also Available
Product Code: WHC150XHD-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
WHC150XHD Pin
WHC150XHD Pin
Login
View full details
Description
Specification
WHC150XHD chain is commonly found in forestry products, grain handling applications, and conveying applications. This WHC150XHD chain is a high quality, durable, and economically priced product. Something special about this chain is that each and every component is fully heat-treated and hardened to drastically increase the overall chain strength, working life, and durability. Additionally this chain features wide sidebars and heavier duty pins which increases the chain strength even more!

Dimensions:
WHC150XHD Extra Heavy Duty Chain
  • Part Number: WHC150XHD
  • Ultimate Strength: 148,000 LBS
  • Pitch (A): 6.050"
  • Sidebar Height (B): 2-1/2"
  • Sidebar Thickness (C): 5/8"
  • Pin diameter (D): 1.00"
  • Overall Width (E): 6-3/4"
  • Length Of Bearing (F): 4.687"
  • Maximum Sprocket thickness (G): 3-1/8"
  • Barrel Outside Diameter (H): 1.660"
  • Links Per Foot: 2.00
  • Weight Per Foot: 18.00 LBS

We offer a full line of high quality sprockets for this chain that range in tooth side, bore size, and hub configurations to meet your exact needs. Additionally we offer a full line of attachments for this chain. For pricing and availability on WHC150XHD chain, attachments, or sprockets, please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Chain
  • Fully Heat-Treated Components
  • Extra Heavy Duty
  • Straight Side Bars
  • Extremely Durable
  • Easiest In Field Welding
  • High Strength
Featured image
  • Part Number: WHC150XHD
  • Ultimate Strength: 148,000 LBS
  • Pitch (A): 6.050"
  • Sidebar Height (B): 2-1/2"
  • Sidebar Thickness (C): 5/8"
  • Pin diameter (D): 1.00"
  • Overall Width (E): 6-3/4"
  • Length Of Bearing (F): 4.687"
  • Maximum Sprocket thickness (G): 3-1/8"
  • Barrel Outside Diameter (H): 1.660"
  • Links Per Foot: 2.00
  • Weight Per Foot: 18.00 LBS
