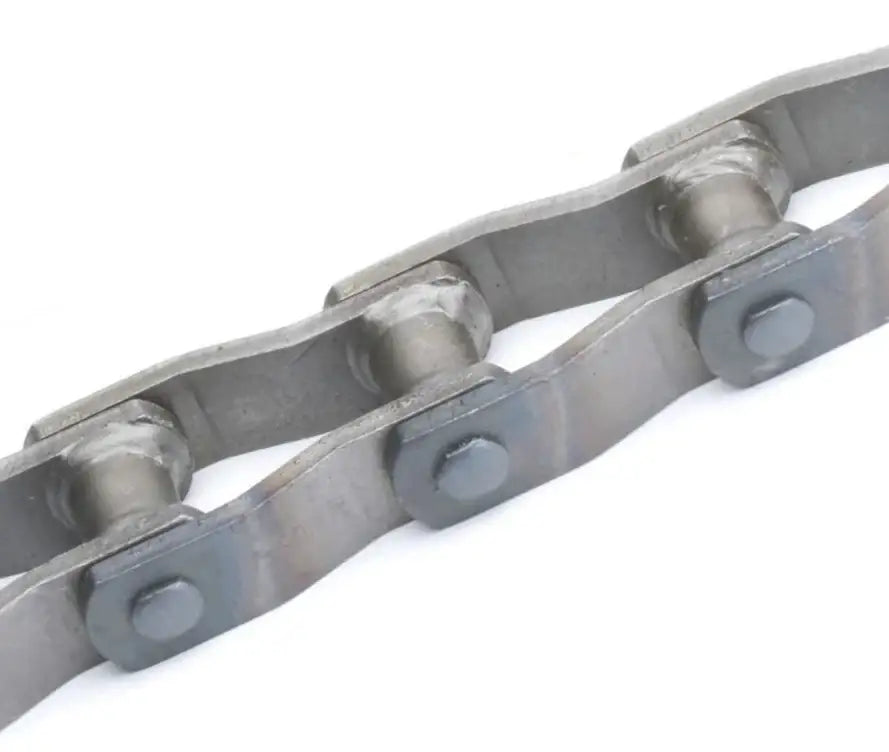

WH-106 Mill Chain

Specialty Chain > Engineering Class Chains > Welded Steel Chain > Offset Sidebar Welded Steel Chain > WH106 Welded Steel Chain

WH-106 Mill Chain

Note: Custom Cut to Length Chain Also Available
SKU: WH-106-MILL-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715467903343" , "metafield_value":""}]
WH-106 Mill Chain Features
WH-106 Mill Chain Specifications
This WH-106 mill chain that we offer exceeds in quality, working life, and strength. Additionally, This WH-106 mill chain is extremely durable, low maintenance, and is supplied at a great price! Something that is notable about this chain is that each and every component has been heat-treated and constructed using high quality steel to further increase the overall working life and strength of the chain. WH 106 welded steel mill chain is often recommended for most conveying, driving, and elevating applications were a high-strength and durable steel roller-less chain is required. Some of the applications where WH 106 mill chain is most commonly found are; heavy-duty conveyors, forest products, grain handling, pulp and paper, and sugar processing.

Dimensions:
WH-106 Mill Chain
  • Part Number: WH106
  • Tensile Strength: 60,000lbs
  • Pitch (A): 6.000"
  • Side Bar Height (B): 1.500"
  • Side Bar Thickness (C): 3/8"
  • Rivet Pin Diameter (D): 3/4"
  • Overall Width (E): 4-1/4"
  • Bearing Length (F): 2-13/16"
  • Barrel Diameter (H): 1.250"
  • Maximum Sprocket Width (G): 1-1/2"
  • Extreme Durability & High Strength
  • Easy Attachment Weld Ability


Additionally, we offer a full line of high quality sprockets that range in tooth size, bore size, and hub configuration, and is manufactured specifically for WH 106 mill chain. We can even supply Made To Order (MTO) and custom sprockets to meet your exact application needs.

WH-106 Mill Chain__WH-106 Mill Chain__WH-106 Mill Chain


We also offer a full line of attachments for this chain that can be assembled in any configuration needed.
WH-106 Mill Chain


For more information on WH-106 Welded Steel Mill Chain or to get a quote on sprockets or attachments, please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: WH-106
  • Tensile Strength: 60,000lbs
  • Pitch (A): 6.000"
  • Side Bar Height (B): 1.500"
  • Side Bar Thickness (C): 3/8"
  • Rivet Pin Diameter (D): 3/4"
  • Overall Width (E): 4-1/4"
  • Bearing Length (F): 2-13/16"
  • Barrel Diameter (H): 1.250"
  • Maximum Sprocket Width (G): 1-1/2"
  • Extreme Durability & High Strength
  • Easy Attachment Weld Ability
