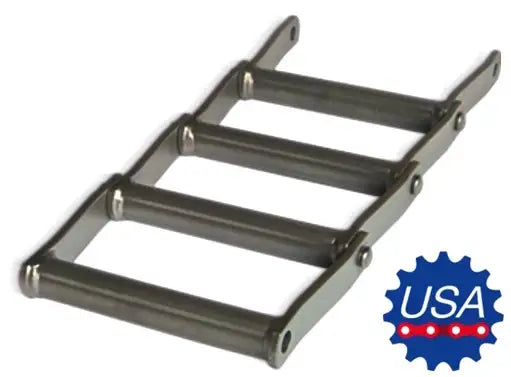

WDH480MM Super Mega Strength Chain

WDH480MM Super Mega Strength Chain

Note: Custom Cut to Length Chain Also Available
Product Code: WDH480MM-CHAIN
Shipping calculated at checkout.
Other Customers Viewed

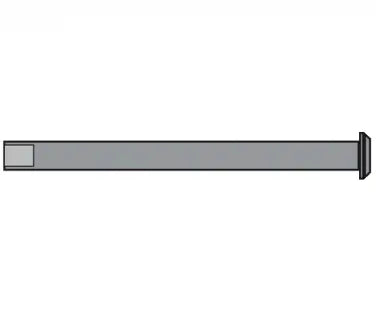

WDH480MM Pin
WDH480MM Pin
Login
View full details
Description
Specification
WDH480MM Super Mega Strength Chain is the strongest standard welded steel chain on the market and is recommended in applications where no other standard chains are not holding up. WDH480MM features fully heat-treated and hardened components that are manufactured out of high-grade alloy steel that has been hardened and heat-treated to give the chain an extended working life and extreme durability. Additionally this chain features an extra heavy-duty special formed barrel of heavy wall tubing for the most severe and harsh applications. WDH480MM chain may be used in conditions where the chain is subject extreme high loads and harsh operating conditions of extreme impacts.

Dimensions:
WDH480MM Super Mega Strength Chain
  • Chain Size: WDH480SM
  • Pitch (A): 8.00"
  • Ultimate Strength: 102,000 LBS
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 1/2"
  • Pin Diameter (D): 1.00"
  • Overall Width (E): 14-1/2"
  • Length Of Bearing (F): 12-3/4"
  • Maximum Sprocket Thickness (G): 11.00"
  • Links Per Foot: 1.50"
  • Weight Per Foot: 22.5 LBS


We also offer attachments for this chain including; wing attachments, C1/2 - C4 attachments, and even custom attachments. We can assemble these attachments in any configuration needed to meet your exact needs.

WDH480MM Super Mega Strength Chain


Additionally, we offer a full line of high quality WDH480MM chain sprockets that exceed in quality, working life, and are supplied at remarkably great prices. We even supply custom made to order sprockets within a really great lead-time.

WDH480MM Super Mega Strength Chain


For pricing and availability on WDH480MM Super Mega Strength chain, sprockets, or attachments please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality & High Strength
  • Manufactured Out Of A Select Grate Of Alloy Steel
  • Fully Heat Treated Components
  • Hardened Components For Increased Durability
  • Heavy Duty Barrel For Severe Applications
  • Wide Pushing Aera
  • Sizable Carrying Capacity
  • Extremely Durable
Featured image
  • Chain Size: WDH480SM
  • Pitch (A): 8.00"
  • Ultimate Strength: 102,000 LBS
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 1/2"
  • Pin Diameter (D): 1.00"
  • Overall Width (E): 14-1/2"
  • Length Of Bearing (F): 12-3/4"
  • Maximum Sprocket Thickness (G): 11.00"
  • Links Per Foot: 1.50"
  • Weight Per Foot: 22.5 LBS
