W12 Lock Washer

Power Transmission > Miscellaneous Items > Roller Bearings, Adapters & Accessories > Inch Lock Washers

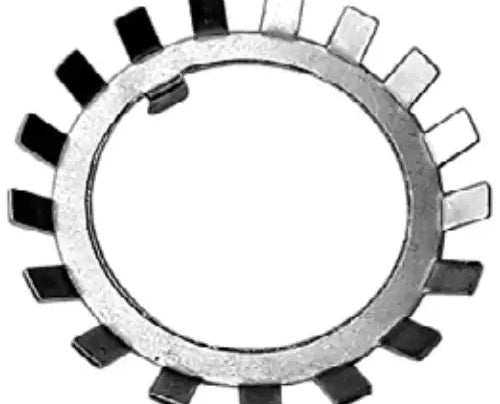

W12 Lock Washer

Note: Custom Cut to Length Chain Also Available
SKU: W12-LOCK-WASHER
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51715458269551" , "metafield_value":""}]
W12 Lock Washer Features
W12 Lock Washer Specifications
This W12 lock washer is a high quality and durable inch lock washer that is manufactured to strict quality control standards. Lock washers are used to prevent the locknut from rotating by having an interior tab that locks into the shaft keyway and exterior tabs that lock the nut in position when one of the washer tabs is bent over into one of the slots around the circumference of the nut. To get pricing and availability or for more information please contact us and we will be happy to assist you.

Dimensions:
W12 Lock Washer
  • Lock Washer Size: W12
  • Bore (R): 2.400"
  • Dimension (E): 2.844"
  • Dimension (B): 3.344"
  • Dimension (S): 0.290"
  • Dimension (X): 2.267"
  • Number of Tangs: 17
  • Dimension (V): 0.125"
  • Dimension (T): 0.234"
  • Dimension (Q): 0.053"

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Lock Washer Size: W12
  • Bore (R): 2.400"
  • Dimension (E): 2.844"
  • Dimension (B): 3.344"
  • Dimension (S): 0.290"
  • Dimension (X): 2.267"
  • Number of Tangs: 17
  • Dimension (V): 0.125"
  • Dimension (T): 0.234"
  • Dimension (Q): 0.053"
