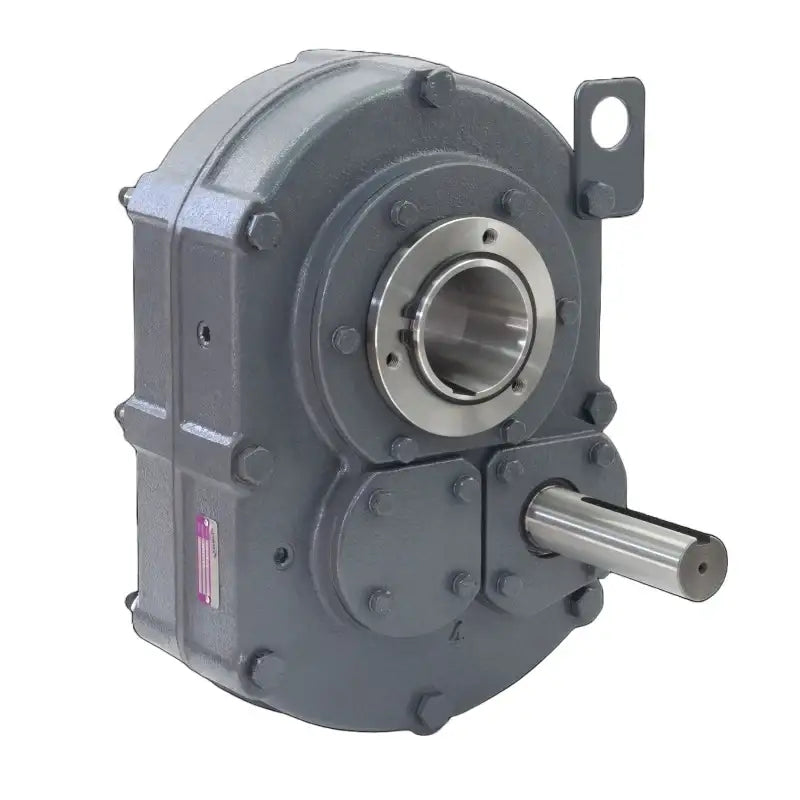

Type TXT509 Reducer 9:1 Ratio Size 5 Shaft Mount Reducer
Login to Request a Quote
Meet the type TXT509 reducer, your ultimate ally in achieving unparalleled reliability, performance, and torque, even in the most challenging environments. Designed as a seamless drop-in replacement for other brands, the type TXT509 reducer features a 9:1 reduction ratio and a convenient size 5 box, making it perfect for energizing conveyors in the dynamic realms of aggregate, agriculture, and material handling.
A reducer, such as the type TXT509, plays a crucial role in mechanical systems by reducing the input speed from a motor while increasing the output torque. This function optimizes power transmission, allowing machinery to operate more efficiently and effectively, thus enhancing overall performance and reliability.
What truly sets the type TXT509 reducer apart is its A.G.M.A precision case-hardened ground gearing, expertly forged from high-grade steel. This engineering marvel significantly minimizes heat, friction, and vibration, outshining its competitors. Encased within a robust cast iron shell, the type TXT509 reducer ensures exceptional horsepower transmission and promises a long-lasting operational life.
Equipped with high-precision bearings and a high-strength shaft, the type TXT509 reducer guarantees an impeccable fit and extended bearing life. Its innovative spring-loaded rubber jacketed double-lipped seals are crafted to prevent any leakage, with each unit undergoing rigorous pressure testing to ensure leak-free performance. Additionally, the exceptional corrosion-resistant finish means this gearbox is ready to withstand the elements, offering enduring durability in outdoor environments.
For more information or to request a quote on the type TXT509 reducer, reach out to our enthusiastic customer service team. We're excited to help you harness the full potential of the type TXT509 reducer for your projects!
Type TXT509 Reducer Dimensions
- Part #: VORTXT509
- Ratio: 9:1
- Box Size: 5
- Dimension (L): 13.13"
- Dimension (M): 18.31"
- Dimension (N): 10.52"
- Dimension (F): 1.9375"
- Key: 0.50" X 0.25" X 4.50"
- Maximum Dimension (B): 2-15/16"
- Dimension (C): 1.81"
- Dimension (E): 5.63"
- Dimension (G): 3.44"
- Dimension (W): 1.75"
- Dimension (U): 1.44"
- Dimension (X): 5.05"
- Dimension (V): 4.45"
- Dimension (Q): 5.74"
- Dimension (Y): 1.91"
- Dimension (H): 6.31"
- Dimension (A1): 3.04"
- Dimension (A2): 6.43"
- Dimension (A3): 5.67"
- Dimension (h): 6.56"
- Minimum Dimension (R): 29.19"
- Maximum Dimension (R): 35.19"
- Dimension (P): 0.50"
- Dimension (T): 4.00"
- Gear Box Weight: 204 LBS
