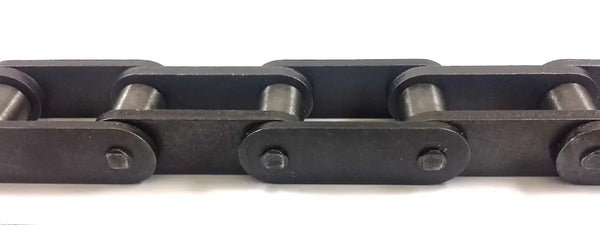

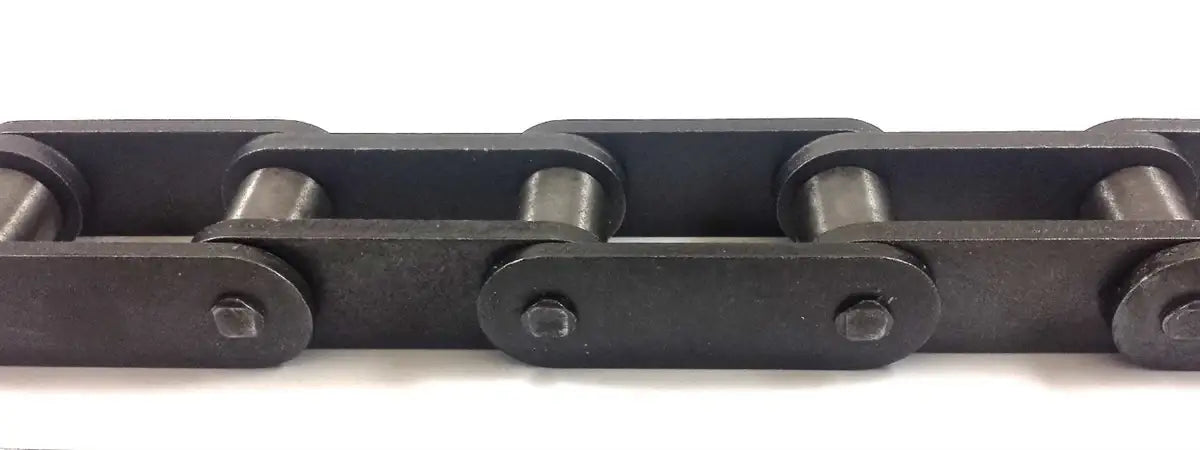

US-5042 Chain

US-5042 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: US-5042-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
US-5042 Straight Sidebar Drive Chain Connecting (Master) Link
US-5042 Straight Sidebar Drive Chain Connecting (Master) Link
Login
US-5042 Pin
US-5042 Pin
Login
View full details
Description
Specification
This US-5042 chain is a straight sidebar drive chain that is manufactured to be high strength, durable, and have great performance. We offer some of the best pricing in the industry on US-5042 chain! US-5042 chain is found in some of the most sever applications on earth including power drives, constructing machinery, and heavy duty conveyors. US-5042 can even operate in these harsh applications at moderately high speeds. This chain has been manufactured using select grades of alloy steel for high strength and durability, along with press fitted pins to prevent pin rotation. Additionally we offer a full line of high quality US-5042 chain sprockets that range in, construction, tooth count, bore, and hub configurations. For pricing and availability on US-5042 straight sidebar drive chain or sprockets please contact us.

Dimensions:
US-5042 Chain
  • Part Number: US-5042
  • Pitch: 5.000"
  • Style: Straight Sidebar
  • Ultimate Strength: 420,000 LBS
  • Weight Per Foot: 53.0 LBS
  • Rated Working Load: 23,600 LBS
  • Pin Diameter (G): 1.500"
  • Inside Width (E): 3.000"
  • Dimension (B): 3.880"
  • Dimension (C): 3.400"
  • Pin Style: K/ Full Round
  • Pin Material: Heat-Treated & Induction Hardened Alloy Steel
  • Roller Diameter (D): 3.000"
  • Roller Material: Heat-Treated Alloy Steel
  • Sidebar Thickness (T): 0.750"
  • Sidebar Height (H): 4.000"
  • Sidebar Material: Heat-Treated Alloy Steel
  • Bushing Diameter: 2.000"
  • Bushing Material: Heat-Treated Alloy Steel

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Drive Chain
  • Straight Sidebar Style
  • Extremely High Strength
  • Durable
Featured image
  • Part Number: US-5042
  • Pitch: 5.000"
  • Style: Straight Sidebar
  • Ultimate Strength: 420,000 LBS
  • Weight Per Foot: 53.0 LBS
  • Rated Working Load: 23,600 LBS
  • Pin Diameter (G): 1.500"
  • Inside Width (E): 3.000"
  • Dimension (B): 3.880"
  • Dimension (C): 3.400"
  • Pin Style: K/ Full Round
  • Pin Material: Heat-Treated & Induction Hardened Alloy Steel
  • Roller Diameter (D): 3.000"
  • Roller Material: Heat-Treated Alloy Steel
  • Sidebar Thickness (T): 0.750"
  • Sidebar Height (H): 4.000"
  • Sidebar Material: Heat-Treated Alloy Steel
  • Bushing Diameter: 2.000"
  • Bushing Material: Heat-Treated Alloy Steel
