UNI Chain NH 78 Chain

By Application > Wastewater Products > Wastewater Chain > NH78 CHAINS

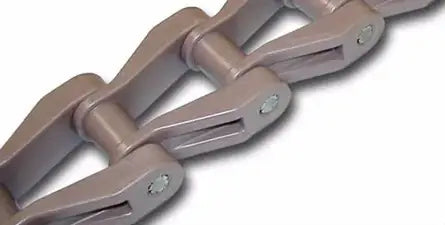

UNI Chain NH 78 Chain

Note: Custom Cut to Length Chain Also Available
SKU: UNI-CHAIN-NH-78
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715449880943" , "metafield_value":""}]
UNI Chain NH 78 Chain Features
UNI Chain NH 78 Chain Specifications
UNI Chain NH 78 Chain offers high strength at a lightweight and ultimate corrosion resistance. This NH78 plastic chain is directly interchangeable with 78 series chains and sprockets of all materials so tit is easy and affordable to make the switch. Something special about this chain is that it features high strength stainless steel pins, meaning that it is higher strength and much more durable. The unified design of each link also makes it extremely high strength, and the acetal construction makes it highly corrosion resistant while providing a natural lubricant eliminating the need for oilers or lube lines.

Besides the UNI NH78 chain we offer a full line of sprockets, bearings, drives, shafting, wear components, flights, and skimmer assemblies. USA Roller Chain and Sprockets sets its self apart from the competition by having 100+ years of customer experience, extremely competitive pricing, a wide range of inventory, and rapid fast customer service. To get a quote or for more information on UNI Chain NH 78 Chain please contact us and we will be happy to assist you.

Dimensions:
UNI Chain NH 78 Chain
  • Chain Size: NH 78
  • Pitch: 2.609"
  • Pin Diameter (D): 0.38"
  • Sidebar Height (F): 1.12"
  • Barrel Diameter (H): 0.88"
  • Maximum Sprocket Face (A): 0.94"
  • Bearing Length (X): 1.62"
  • Overall Width (E): 3.19"
  • Head of Pin to Center Line (J): 2.10"
  • End of Pin To Center Line Cottered (K): 2.19"
  • End of Pin To Center Line Riveted (L): 1.59"
  • Maximum Recombined Working Load: 1,750 LBS
  • Average Ultimate Strength: 3,100 LBS
  • Links Per 10ft: 46
  • Weight: 1.5 LBS/ FT
  • Link Material: Nylon-6
  • Pin Material: Stainless Steel

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!
  • Chain Size: NH 78
  • Pitch: 2.609"
  • Pin Diameter (D): 0.38"
  • Sidebar Height (F): 1.12"
  • Barrel Diameter (H): 0.88"
  • Maximum Sprocket Face (A): 0.94"
  • Bearing Length (X): 1.62"
  • Overall Width (E): 3.19"
  • Head of Pin to Center Line (J): 2.10"
  • End of Pin To Center Line Cottered (K): 2.19"
  • End of Pin To Center Line Riveted (L): 1.59"
  • Maximum Recombined Working Load: 1,750 LBS
  • Average Ultimate Strength: 3,100 LBS
  • Links Per 10ft: 46
  • Weight: 1.5 LBS/ FT
  • Link Material: Nylon-6
  • Pin Material: Stainless Steel
