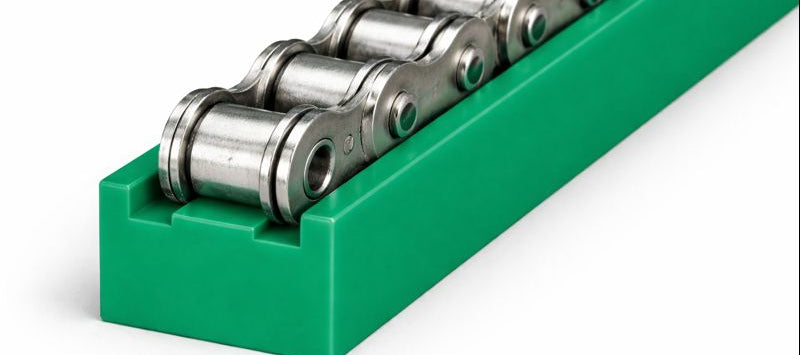

Type-TS 08B Chain Guide
Note:
Custom Lengths Available
SKU: TYPE-TS-08B-GUIDE
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Type-TS 08B Chain Guide Description/Features
Type-TS 08B Chain Guide Specifications
Our Type-TS 08B chain guide is manufactured to high precision tolerances and conforms to ISO and DIN 8187 standards, thus guiding 08B roller chain in the most effective and productive manner possible. Using a roller chain guide is common in most conveying applications where you don't want metal-on-metal contact for wear purposes. Not only does using a chain guide drastically increase the wear life of a roller chain, but it also reduces on noise levels in applications that have metal-on-metal contact. This guide is typically in stock as 10ft lengths but we can also supply chain guides in custom lengths upon request. Standardly this guide is in stock as a green UHMW that conforms to European guidelines but other materials are available upon request.
Besides chain guides we can also supply high quality metric roller chains, metric roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-TS 08B chain guide or for additional information please contact our sales team and we will be happy to assist you.
Type TS 08B Chain Guide Dimensions
- Chain Size: 08B
- Chain Dimensions: 1/2" X 5/16"
- Dimension (B): 25mm
- Dimension (H): 15mm
- Dimension (T): 5.7mm
- Dimension (M): 16.3mm
- Dimension (G): 2.2mm
- Dimension (U): 1.6mm
Besides chain guides we can also supply high quality metric roller chains, metric roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-TS 08B chain guide or for additional information please contact our sales team and we will be happy to assist you.
- Chain Size: 08B
- Chain Dimensions: 1/2" X 5/16"
- Dimension (B): 25mm
- Dimension (H): 15mm
- Dimension (T): 5.7mm
- Dimension (M): 16.3mm
- Dimension (G): 2.2mm
- Dimension (U): 1.6mm
