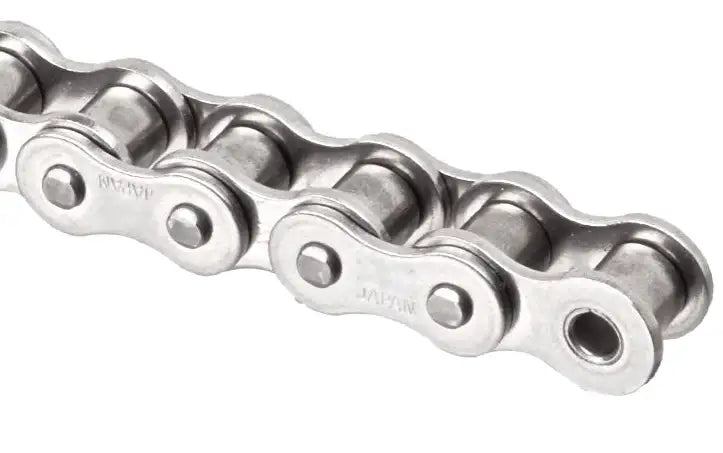

Metric 08B Stainless Steel Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Metric 08B stainless steel roller chain is one of the most commonly used metric chain sizes worldwide. Our high-quality 08B stainless roller chain is manufactured from top-tier 304-grade stainless, utilizes precision components, and has undergone factory pre-loading. Combining these creates an 08BSS chain with superior performance, lifespan, and corrosion resistance. Our 08B stainless steel roller chain is commonly found in food processing, packaging, marine environments, bottling, and more applications! This 12.7mm (1/2") pitch chain is highly versatile and conforms dimensionally to ISO and British Standards (BS) for direct interchangeability with other brands. For additional information or a quote on our superior 08B stainless steel roller chain, contact our customer support team, and we will gladly assist you!
08B Stainless Roller Chain Dimensions
- Part #: 08BSS
- Pitch (P): 12.70mm
- Roller Width (R): 7.75mm
- Roller Diameter (D): 8.51mm
- Overall Width (W): 17.00mm
- Connecting Link Overall Width (X): 20.90mm
- Plate Height (H): 11.56mm
- Plate Thickness (T): 1.58mm
- Pin Diameter (L): 4.44mm
- Weight: 0.7 kG/ m
- Part #: 08BSS
- Pitch (P): 12.70mm
- Roller Width (R): 7.75mm
- Roller Diameter (D): 8.51mm
- Overall Width (W): 17.00mm
- Connecting Link Overall Width (X): 20.90mm
- Plate Height (H): 11.56mm
- Plate Thickness (T): 1.58mm
- Pin Diameter (L): 4.44mm
- Weight: 0.7 kG/ m
