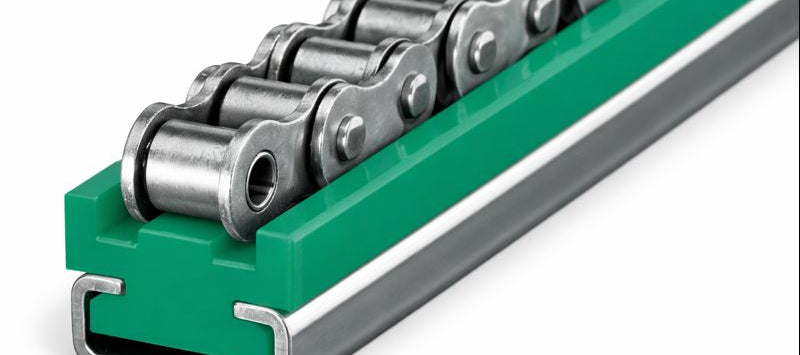

Type-CTS 06B Chain Guide - Mounted
Note:
Custom Lengths Available
SKU: TYPE-CTS-06B-GUIDE
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Type-CTS 06B Chain Guide - Mounted Description/Features
Type-CTS 06B Chain Guide - Mounted Specifications
Our mounted Type-CTS 06B chain guide is manufactured to high precision tolerances and conforms to ISO and DIN 8187 standards, thus guiding 06B roller chain in the most effective and productive manner possible. This chain guide is a mounted style meaning that it uses a steel mounting channel, specifically the Type-CTS 06B chain guide uses a C3 profile. We keep C3 profile mounting channels in stock in galvanized, non galvanized, and stainless steel materials. Using a roller chain guide is common in most conveying applications where you don't want metal-on-metal contact for wear purposes. Not only does using a chain guide drastically increase the wear life of a roller chain, but it also reduces on noise levels in applications that have metal-on-metal contact. This guide is typically in stock as 10ft lengths but we can also supply chain guides in custom lengths upon request. Standardly this guide is in stock as a green UHMW that conforms to European guidelines but other materials are available upon request.
C3 Profile Dimensions
Besides chain guides we can also supply high quality metric roller chains, metric roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-CTS 06B mounted chain guide or for additional information please contact our sales team and we will be happy to assist you.
Type CTS 06B Chain Guide Dimensions
- Chain Size: 06B
- Chain Dimensions: 3/8" X 7/32
- Dimension (B): 20mm
- Dimension (W): 20mm
- Dimension (H): 14mm
- Dimension (N): 17mm
- Dimension (E): 3.8mm
- Dimension (G): 13mm
- Dimension (T): 1.5mm
- Dimension (F): 1.1mm
- Dimension (B): 20mm
- Dimension (T): 10mm
- Dimension (H): 10mm
- Dimension (W): 1.5mm
Besides chain guides we can also supply high quality metric roller chains, metric roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-CTS 06B mounted chain guide or for additional information please contact our sales team and we will be happy to assist you.
- Chain Size: 06B
- Chain Dimensions: 3/8" X 7/32
- Dimension (B): 20mm
- Dimension (W): 20mm
- Dimension (H): 14mm
- Dimension (N): 17mm
- Dimension (E): 3.8mm
- Dimension (G): 13mm
- Dimension (T): 1.5mm
- Dimension (F): 1.1mm
- Dimension (B): 20mm
- Dimension (T): 10mm
- Dimension (H): 10mm
- Dimension (W): 1.5mm
