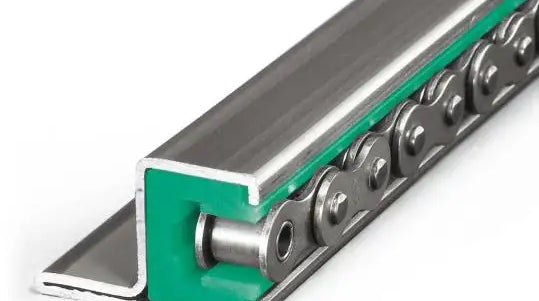

Type-CKG 14H #35 Chain Guide - Mounted
Note:
Custom Cut to Length Chain Also Available
SKU: TYPE-CKG-14H-35-GUIDE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Type-CKG 14H #35 Chain Guide - Mounted Features
Type-CKG 14H #35 Chain Guide - Mounted Specifications

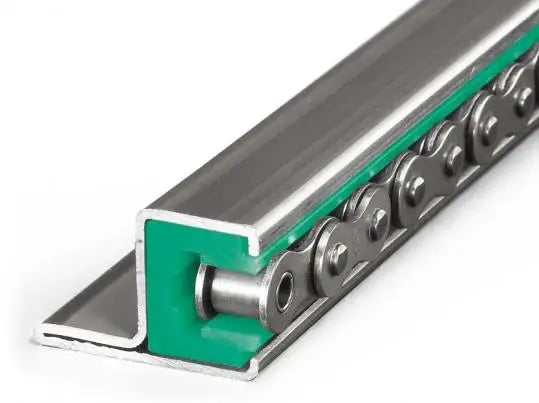

Our mounted Type-CKG 14H #35 chain guide is manufactured to high precision tolerances and conforms to ANSI standards for guiding #35 roller chain in the most effective and productive manner possible. This chain guide is a mounted style meaning that it uses a steel mounting channel, specifically the Type-CKG 14H #35 chain guide uses a C14H profile. We keep C14H profile mounting channels in stock in galvanized, non galvanized, and stainless steel materials. Using a roller chain guide is common in most conveying applications where you don't want metal-on-metal contact for wear purposes. Not only does using a chain guide drastically increase the wear life of a roller chain, but it also reduces on noise levels in applications that have metal-on-metal contact. This guide is typically in stock as 10ft lengths but we can also supply chain guides in custom lengths upon request.
C14H Profile Dimensions
Besides chain guides we can also supply high quality roller chains, roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-CKG 14H #35 chain guide or for additional information please contact our sales team and we will be happy to assist you.
Type CKG 14H #35 Chain Guide Dimensions
- Chain Size: #35
- Chain Dimensions: 3/8" X 3/16"
- Dimension (A): 31mm
- Dimension (B): 25mm
- Dimension (C): 47mm
- Dimension (D): 5.3mm
- Dimension (E): 4.5mm
- Dimension (F): 10mm
- Dimension (G): 4.4mm
- Dimension (H): 7.8mm
- Dimension (I): 9.3mm
- Dimension (B): 31mm
- Dimension (T): 20mm
- Dimension (H): 25mm
- Dimension (W): 2mm
- Dimension (L): 47mm
Besides chain guides we can also supply high quality roller chains, roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-CKG 14H #35 chain guide or for additional information please contact our sales team and we will be happy to assist you.
- Chain Size: #35
- Chain Dimensions: 3/8" X 3/16"
- Dimension (A): 31mm
- Dimension (B): 25mm
- Dimension (C): 47mm
- Dimension (D): 5.3mm
- Dimension (E): 4.5mm
- Dimension (F): 10mm
- Dimension (G): 4.4mm
- Dimension (H): 7.8mm
- Dimension (I): 9.3mm
- Dimension (B): 31mm
- Dimension (T): 20mm
- Dimension (H): 25mm
- Dimension (W): 2mm
- Dimension (L): 47mm
