Premium 35 Stainless Steel Roller Chain 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

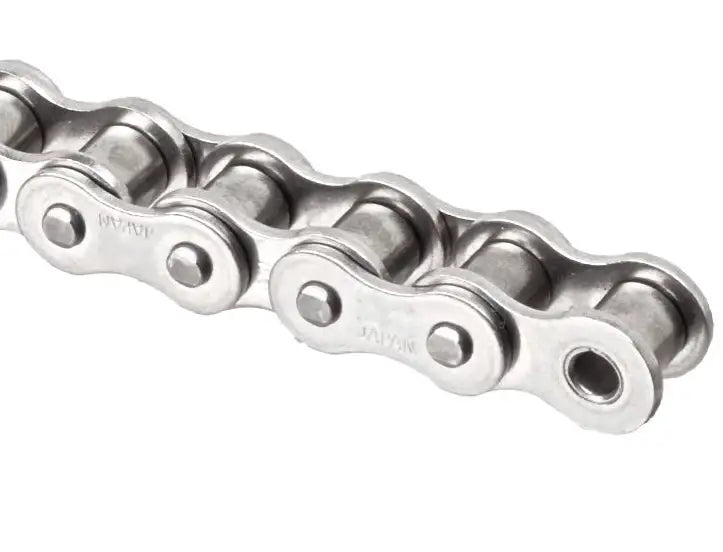

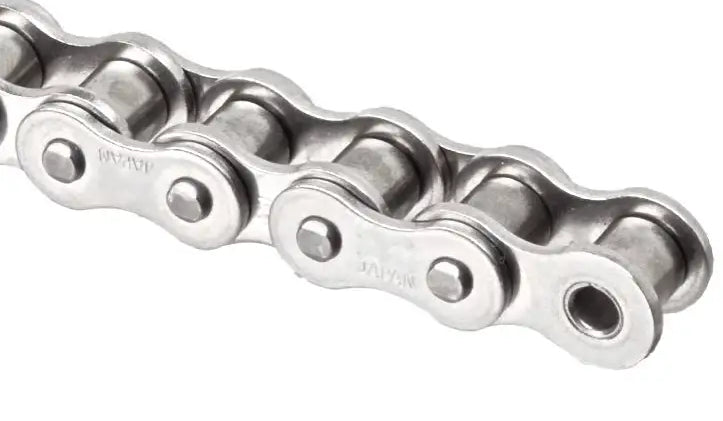

Our premium 35 stainless steel roller chain sets the bar for performance, longevity, and overall quality. It has a 0.375" pitch and dimensionally conforms to ANSI B29.1 standards for direct interchangeability; it is also the second smallest ANSI chain on the market. Our 35SS roller chain features high-precision components made from top-quality 304-grade stainless material, giving it superior capabilities to operate within corrosive and abrasive environments. More specifically, 35 stainless chains are found in food processing, scientific, and more applications! We also supply a range of 35 stainless sprockets and other accessories. For additional information or to get a quote on our superior 35 stainless steel roller chain, contact our customer support team, and we will gladly assist you!
35 Stainless Steel Chain Dimensions
- Part #: 35SS
- Pitch (P): 0.375"
- Bushing Width (R): 0.188"
- Bushing Diameter (D): 0.200"
- Overall Width (W): 0.520"
- Connecting Link Overall Width (X): 0.644"
- Plate Height (H): 0.356"
- Plate Thickness (T): 0.050"
- Pin Diameter (L): 0.141"
- Tensile Strength: 1,440 LBS
- Working Load: 60 LBS
- Weight Per Foot: 0.22 LBS
- Part #: 35SS
- Pitch (P): 0.375"
- Bushing Width (R): 0.188"
- Bushing Diameter (D): 0.200"
- Overall Width (W): 0.520"
- Connecting Link Overall Width (X): 0.644"
- Plate Height (H): 0.356"
- Plate Thickness (T): 0.050"
- Pin Diameter (L): 0.141"
- Tensile Strength: 1,440 LBS
- Working Load: 60 LBS
- Weight Per Foot: 0.22 LBS
