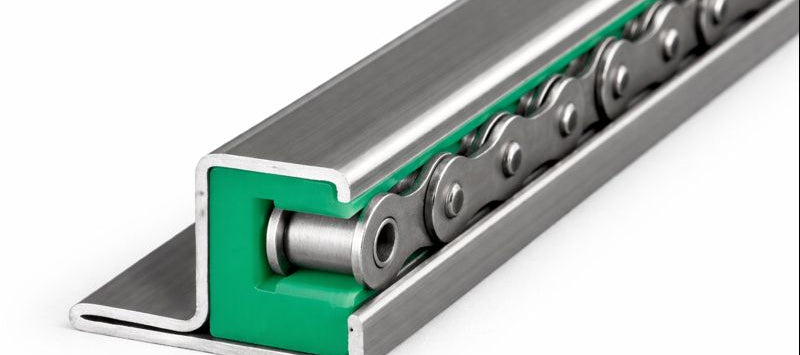

Type-CKG 14H 06B Chain Guide - Mounted

Name: Type-CKG 14H 06B Chain Guide - Mounted
Brand: USA ROLLER CHAIN
SKU: TYPE-CKG-14H-06B-GUIDE
Availability: InStock

Note: Custom Lengths Available

SKU: TYPE-CKG-14H-06B-GUIDE

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

Type-CKG 14H 06B Chain Guide - Mounted Description/Features

Type-CKG 14H 06B Chain Guide - Mounted Specifications

Our mounted Type-CKG 14H 06B chain guide is manufactured to high precision tolerances and conforms to ISO and DIN 8187 standards, thus guiding 06B roller chain in the most effective and productive manner possible. This chain guide is a mounted style meaning that it uses a steel mounting channel, specifically the Type-CKG 14H 06B chain guide uses a C14H profile. We keep C14H profile mounting channels in stock in galvanized, non galvanized, and stainless steel materials. Using a roller chain guide is common in most conveying applications where you don't want metal-on-metal contact for wear purposes. Not only does using a chain guide drastically increase the wear life of a roller chain, but it also reduces on noise levels in applications that have metal-on-metal contact. This guide is typically in stock as 10ft lengths but we can also supply chain guides in custom lengths upon request. Standardly this guide is in stock as a green UHMW that conforms to European guidelines but other materials are available upon request.

Type CKG 14H 06B Chain Guide Dimensions

Chain Size: 06B
Chain Dimensions: 3/8" X 7/32"
Dimension (A): 31mm
Dimension (B): 25mm
Dimension (C): 47mm
Dimension (D): 6.6mm
Dimension (E): 4mm
Dimension (F): 9.4mm
Dimension (G): 5.5mm
Dimension (H): 8.9mm
Dimension (I): 10mm

C14H Profile Dimensions

Dimension (B): 31mm
Dimension (T): 20mm
Dimension (H): 25mm
Dimension (W): 2mm
Dimension (L): 47mm

Besides chain guides we can also supply high quality metric roller chains, metric roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-CKG 14H 06B mounted chain guide or for additional information please contact our sales team and we will be happy to assist you.

Chain Size: 06B
Chain Dimensions: 3/8" X 7/32"
Dimension (A): 31mm
Dimension (B): 25mm
Dimension (C): 47mm
Dimension (D): 6.6mm
Dimension (E): 4mm
Dimension (F): 9.4mm
Dimension (G): 5.5mm
Dimension (H): 8.9mm
Dimension (I): 10mm
