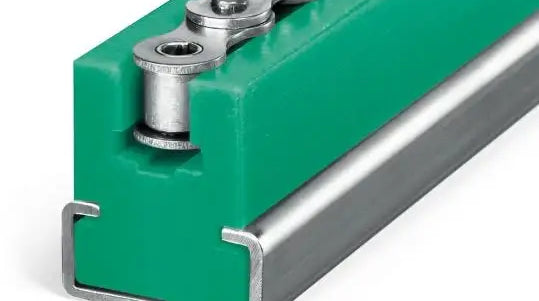

Type-CK #80 Chain Guide - Mounted
Note:
Custom Cut to Length Chain Also Available
SKU: TYPE-CK-80-GUIDE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Type-CK #80 Chain Guide - Mounted Features
Type-CK #80 Chain Guide - Mounted Specifications

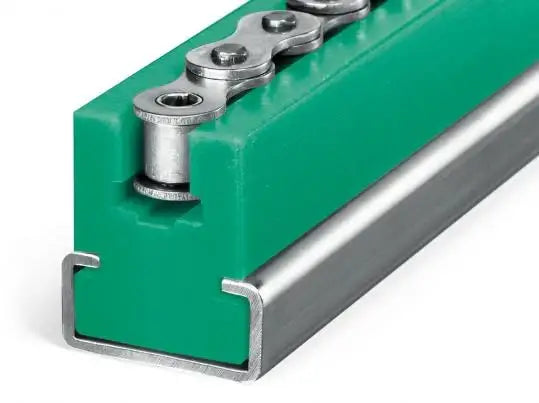

Our mounted Type-CK #80 chain guide is manufactured to high precision tolerances and conforms to ANSI standards for guiding #80 roller chain in the most effective and productive manner possible. This chain guide is a mounted style meaning that it uses a steel mounting channel, specifically the Type-CK #80 chain guide uses a C9 profile. We keep C9 profile mounting channels in stock in galvanized, non galvanized, and stainless steel materials. Using a roller chain guide is common in most conveying applications where you don't want metal-on-metal contact for wear purposes. Not only does using a chain guide drastically increase the wear life of a roller chain, but it also reduces on noise levels in applications that have metal-on-metal contact. This guide is typically in stock as 10ft lengths but we can also supply chain guides in custom lengths upon request.
C9 Profile Dimensions
Different Type-CK Chain Guide Available Materials:
Black Repro UHMW is for low demanding applications and is the lower cost material available for chain guides, it has an overall lower property level than virgin UHMW-PE.
Oil-Filled UHMW is best for high-speed applications and will poses an extended chain life as well.
Green Repro UHMW matches DIN 2768 European guidelines. This UHMW shares the same characteristics as the black repro material.
Static Dissipative UHMW is a high quality conductive material.
HT UHMW is a high performance material for high temperature applications, it can operate in temperatures up to 275°F.
Besides chain guides we can also supply high quality roller chains, roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-CK #80 chain guide or for additional information please contact our sales team and we will be happy to assist you.
Type CK #80 Chain Guide Dimensions
- Chain Size: #80
- Dimension (A): 2.26"
- Dimension (B): 1.50"
- Dimension (C): 0.60"
- Dimension (D): 0.65"
- Dimension (E): 2.55"
- Dimension (B): 38mm
- Dimension (T): 22mm
- Dimension (H): 18mm
- Dimension (W): 2.5mm
Black Repro UHMW is for low demanding applications and is the lower cost material available for chain guides, it has an overall lower property level than virgin UHMW-PE.
Oil-Filled UHMW is best for high-speed applications and will poses an extended chain life as well.
Green Repro UHMW matches DIN 2768 European guidelines. This UHMW shares the same characteristics as the black repro material.
Static Dissipative UHMW is a high quality conductive material.
HT UHMW is a high performance material for high temperature applications, it can operate in temperatures up to 275°F.
Besides chain guides we can also supply high quality roller chains, roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-CK #80 chain guide or for additional information please contact our sales team and we will be happy to assist you.
- Chain Size: #80
- Dimension (A): 2.26"
- Dimension (B): 1.50"
- Dimension (C): 0.60"
- Dimension (D): 0.65"
- Dimension (E): 2.55"
- Dimension (B): 38mm
- Dimension (T): 22mm
- Dimension (H): 18mm
- Dimension (W): 2.5mm
