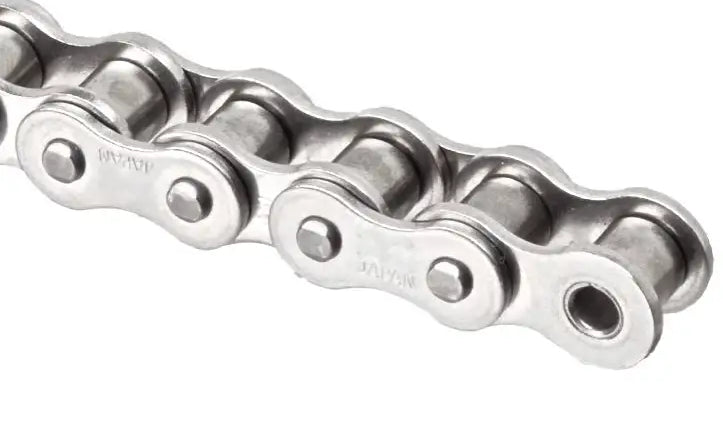

Premium 80 Stainless Steel Roller Chain 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

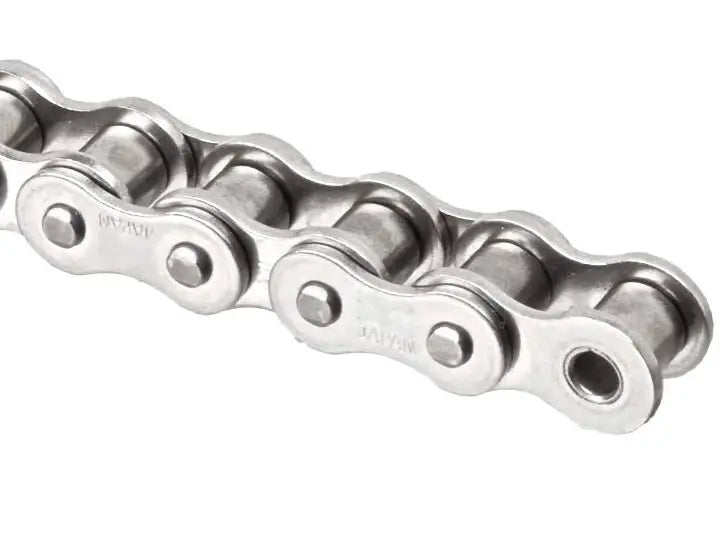

80 stainless steel roller chain is one of the most commonly used stainless chains worldwide. Our premium 80 stainless steel chain sets the bar regarding quality, performance, and lifespan. This chain showcases high-precision components that have been magnificently assembled for optimal performance. Additionally, each component is made from top-tier 304-grade stainless steel for superior corrosion and abrasion resistance while also allowing the chain to operate within an extremely broad range of temperatures. Our premium 80SS stainless roller chain is often used in food processing, beverage, packaging, and within corrosive environments. We also supply 80 stainless steel sprockets and other components associated with an 80SS chain. For additional information or to get a quote on our premium 80 stainless steel roller chain, contact our customer service team, and we will gladly assist you!
80 Stainless Steel Chain Dimensions
- Part #: 80SS
- Pitch (P): 1.000"
- Roller Width (R): 0.625"
- Roller Diameter (D): 0.625"
- Overall Width (W): 1.319"
- Connecting Link Overall Width (X): 1.532"
- Plate Height (H): 0.950"
- Plate Thickness (T): 0.125"
- Pin Diameter (L): 0.312"
- Tensile Strength: 10,670 LBS
- Working Load: 396 LBS
- Weight Per Foot: 1.71 LBS
- Part #: 80SS
- Pitch (P): 1.000"
- Roller Width (R): 0.625"
- Roller Diameter (D): 0.625"
- Overall Width (W): 1.319"
- Connecting Link Overall Width (X): 1.532"
- Plate Height (H): 0.950"
- Plate Thickness (T): 0.125"
- Pin Diameter (L): 0.312"
- Tensile Strength: 10,670 LBS
- Working Load: 396 LBS
- Weight Per Foot: 1.71 LBS
