SS715 Chain (Stainless Steel)
Note:
Custom Cut to Length Chain Also Available
SKU: SS715-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
SS715 Chain (Stainless Steel) Features
SS715 Chain (Stainless Steel) Specifications

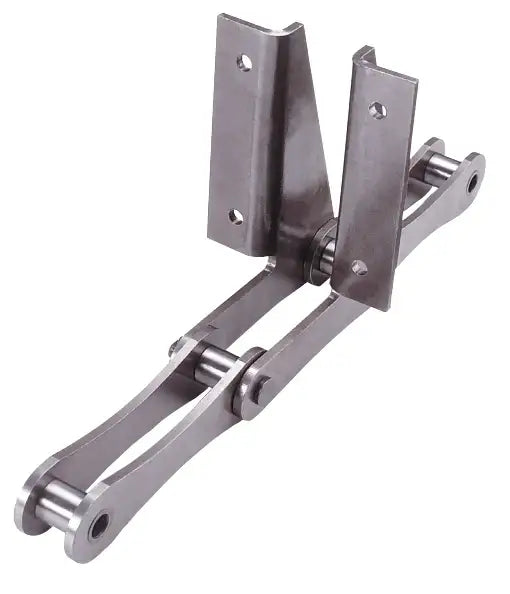

SS715 chain is a stainless steel chain that is primarily used in rectangular clarifiers in wastewater facilities. SS715 chain is manufactured out of a high-quality 403-grade stainless steel so it is manufactured to be high strength, extremely durable, and corrosion resistant. This chain has an average ultimate strength of 33,000 LBS and offers a recommended maximum working load of 5,000 LBS.

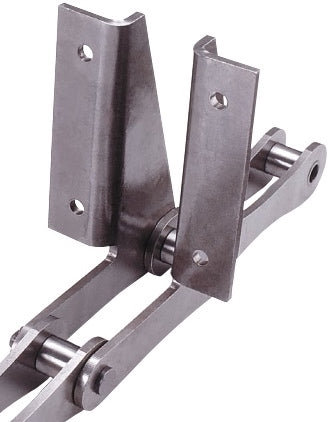

SS715 chain is available with F226 and F228 attachments or with custom attachments per request.
Besides the chain we also offer a full line of sprockets, bearings, shaft, wear materials, drive systems, and skimmer assemblies. USA Roller Chain and sprockets sets its self apart from the competition by having over 100+ years of industry knowledge, competitive pricing, extensive inventory, and we have an A+ BBB rating. To get a quotation on SS715 chain or for more information please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Besides the chain we also offer a full line of sprockets, bearings, shaft, wear materials, drive systems, and skimmer assemblies. USA Roller Chain and sprockets sets its self apart from the competition by having over 100+ years of industry knowledge, competitive pricing, extensive inventory, and we have an A+ BBB rating. To get a quotation on SS715 chain or for more information please contact us and we will be happy to assist you.
Dimensions:
- Chain Size: SS715
- Pitch: 6.000"
- Links Per 10ft: 20
- Weight: 3.9 LBS/ FT
- Average Ultimate Strength: 33,000 LBS
- Maximum Recommended Working Load: 5,000 LBS
- Overall Width Cottered (C2): 2.82"
- Pin Diameter (D): 0.562"
- Sidebar Height (F1): 1.88"
- Sidebar Height (F2): 1.62"
- Bushing Diameter (H): 1.00"
- Head of Pin To Center Line (J): 1.32"
- End of Pin to Center Line Cottered (K): 1.50"
- Sidebar Thickness (T): 0.25"
- Distance Between Sidebars (W): 1.19"
- Bearing Length (X): 1.69"
