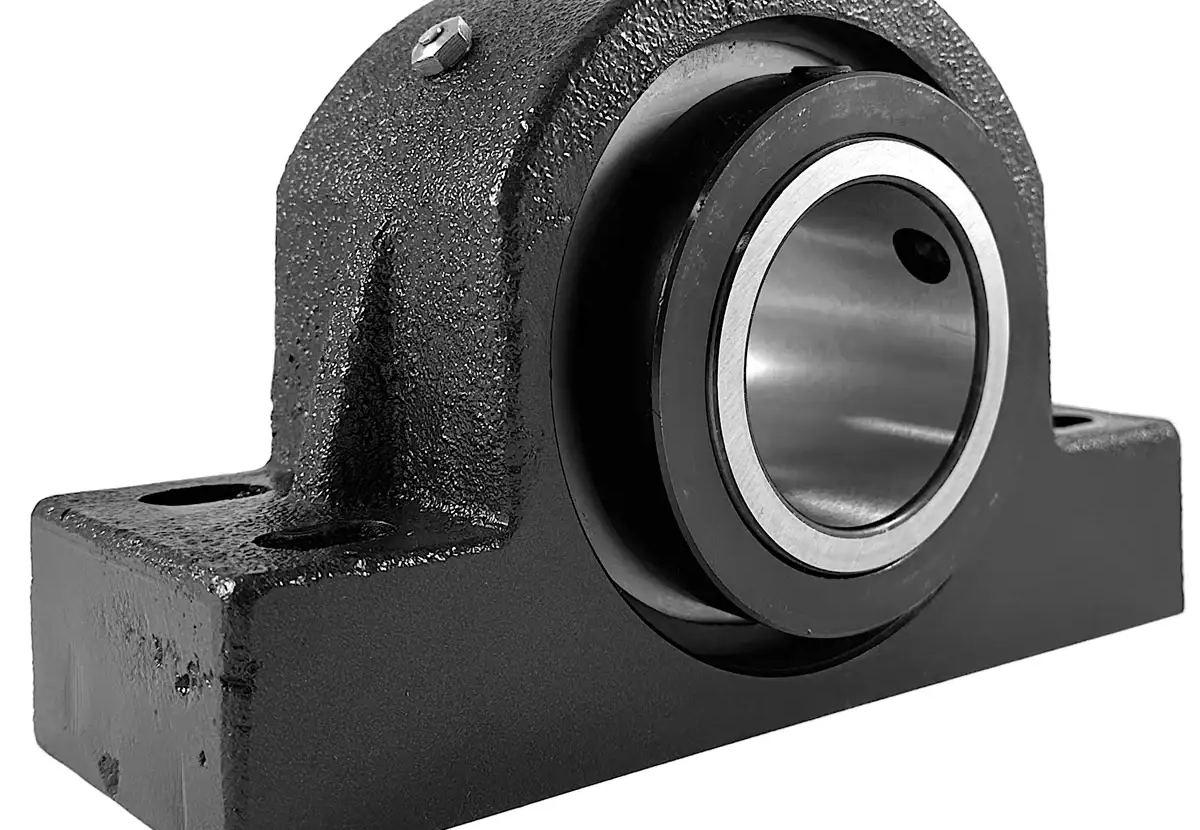

P4B-S2-207RE Bearing | SPB4-2-7/16TE Pillow Block Bearing - Expansion

P4B-S2-207RE Bearing | SPB4-2-7/16TE Pillow Block Bearing - Expansion

Note: Custom Cut to Length Chain Also Available
$549.99
$549.99
In Stock
On Sale Sold out
Product Code: SPB4-2-716TE-BEARING
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
P4B-S2-207R Bearing | SPB4-2-7/16T Pillow Block Bearing
P4B-S2-207R Bearing | SPB4-2-7/16T Pillow Block Bearing
$549.99
Login
View full details
Description
Specification
P4B-S2-207RE bearing is a spherical 4-bolt pillow block expansion bearing with a 2-7/16" bore. Our directly interchanged SPB4 2-7/16TE bearing boasts superior construction and durability compared to other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. P2B-S2-115RE bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an SPB4 2-7/16TE interchange built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, this expansion unit has a high-strength mild steel collar for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SPB4-2-7/16TE bearings interchange with other brands such as Dodge P4B-S2-207RE, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our P4B-S2-207RE bearing replacement, contact our customer service team, and we will be happy to assist you!

SPB4-2-7/16TE Bearing Dimensions


  • Part #: SPB4-2-7/16TE
  • Interchanges With: P4B-S2-207RE
  • Weight: 17.06 LBS
  • Dimension (d): 2-7/16"
  • Dimension (H): 2.750"
  • Dimension (A): 9.250"
  • Dimension (E-Min.): 6.875"
  • Dimension (E-Max.): 7.625"
  • Dimension (B): 3.250"
  • Dimension (S): 0.531"
  • Dimension (P): 1.750"
  • Dimension (G): 1.750"
  • Dimension (W): 5.688"
  • Dimension (Z): 3.750" (+/- 0.050")
  • Dimension (BL): 3.375"
  • Dimension (K): 4.000"
  • Dynamic Load Capacity (Cr): 37,630 LBS
  • Dynamic Load Capacity (Cr): 167.4 kN
  • Static Load Capacity (Cor): 46,960 LBS
  • Static Load Capacity (Cor): 208.9 kN


Feature

  • Directly Interchanges With P4B-S2-207RE Bearing
  • Expansion Unit
  • Advanced PTFE Seals
  • Self-Aligning Bearing Unit
  • Tough Mild-Steel Locking Collar
  • Metal ID Tag For Easy Re-Order
  • Solid High-Strength Housing With Precision Foot Ends
  • Bearing Cavity 33% Filled With Shell Gadus S2 V220 Grease
  • 1/8" NPT Grease Fitting
  • Accepts Automatic Grease Dispensers
  • Pressure Relief Valve
  • Grease Purge Valve Protects Seals From Over Lubrication

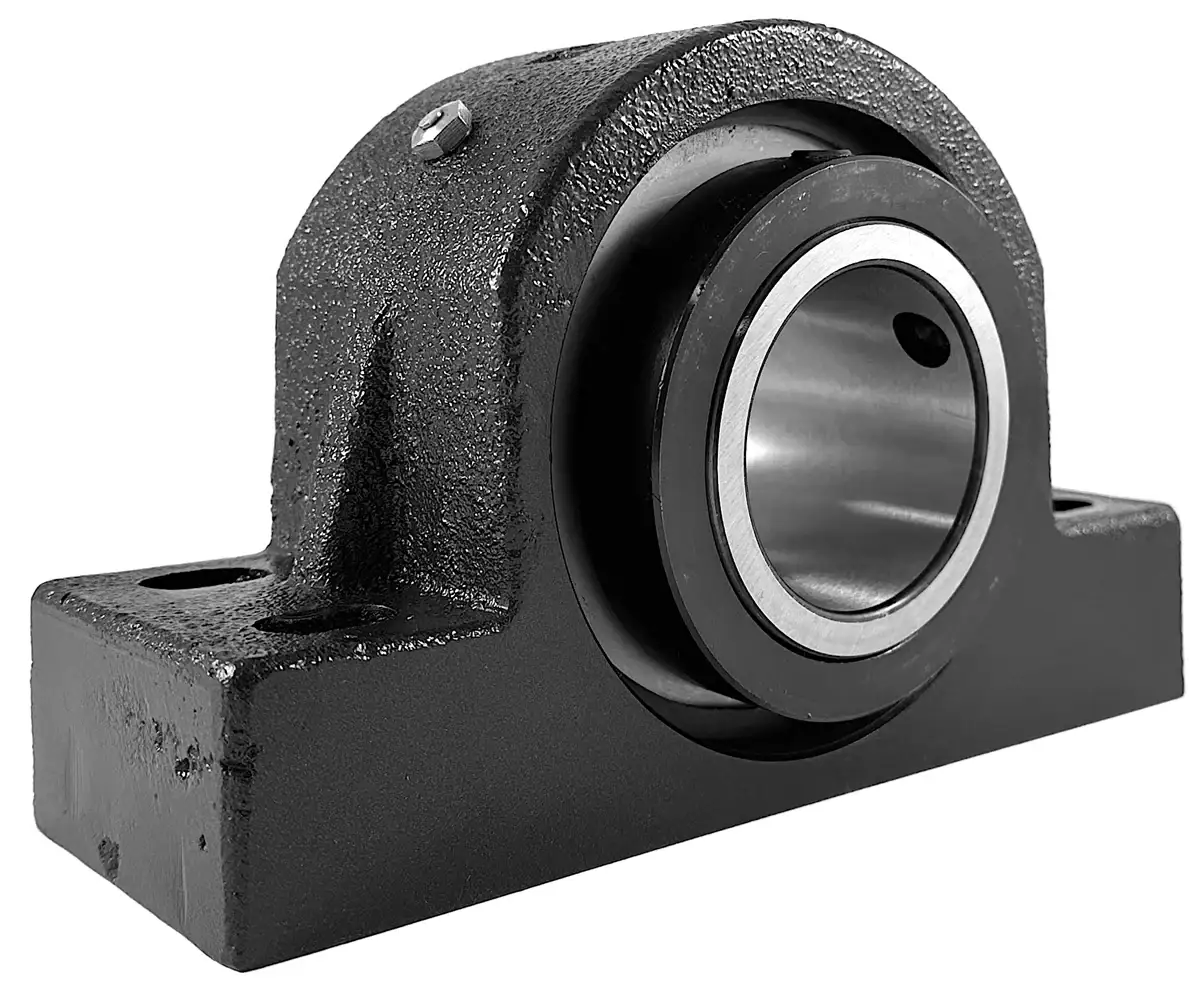

Featured image
  • Part #: SPB4-2-7/16TE
  • Interchanges With: P4B-S2-207RE
  • Weight: 17.06 LBS
  • Dimension (d): 2-7/16"
  • Dimension (H): 2.750"
  • Dimension (A): 9.250"
  • Dimension (E-Min.): 6.875"
  • Dimension (E-Max.): 7.625"
  • Dimension (B): 3.250"
  • Dimension (S): 0.531"
  • Dimension (P): 1.750"
  • Dimension (G): 1.750"
  • Dimension (W): 5.688"
  • Dimension (Z): 3.750" (+/- 0.050")
  • Dimension (BL): 3.375"
  • Dimension (K): 4.000"
  • Dynamic Load Capacity (Cr): 37,630 LBS
  • Dynamic Load Capacity (Cr): 167.4 kN
  • Static Load Capacity (Cor): 46,960 LBS
  • Static Load Capacity (Cor): 208.9 kN
