P2B-S2-208RE Bearing | SPB2-2-1/2TE Pillow Block Bearing - Expansion
P2B-S2-208RE Bearing | SPB2-2-1/2TE Pillow Block Bearing - Expansion
Note:
Custom Cut to Length Chain Also Available
Regular price
$499.99
$499.99
Unit price
per
In Stock
On Sale
Sold out
Product Code: SPB2-2-212TE-BEARING
In Stock
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

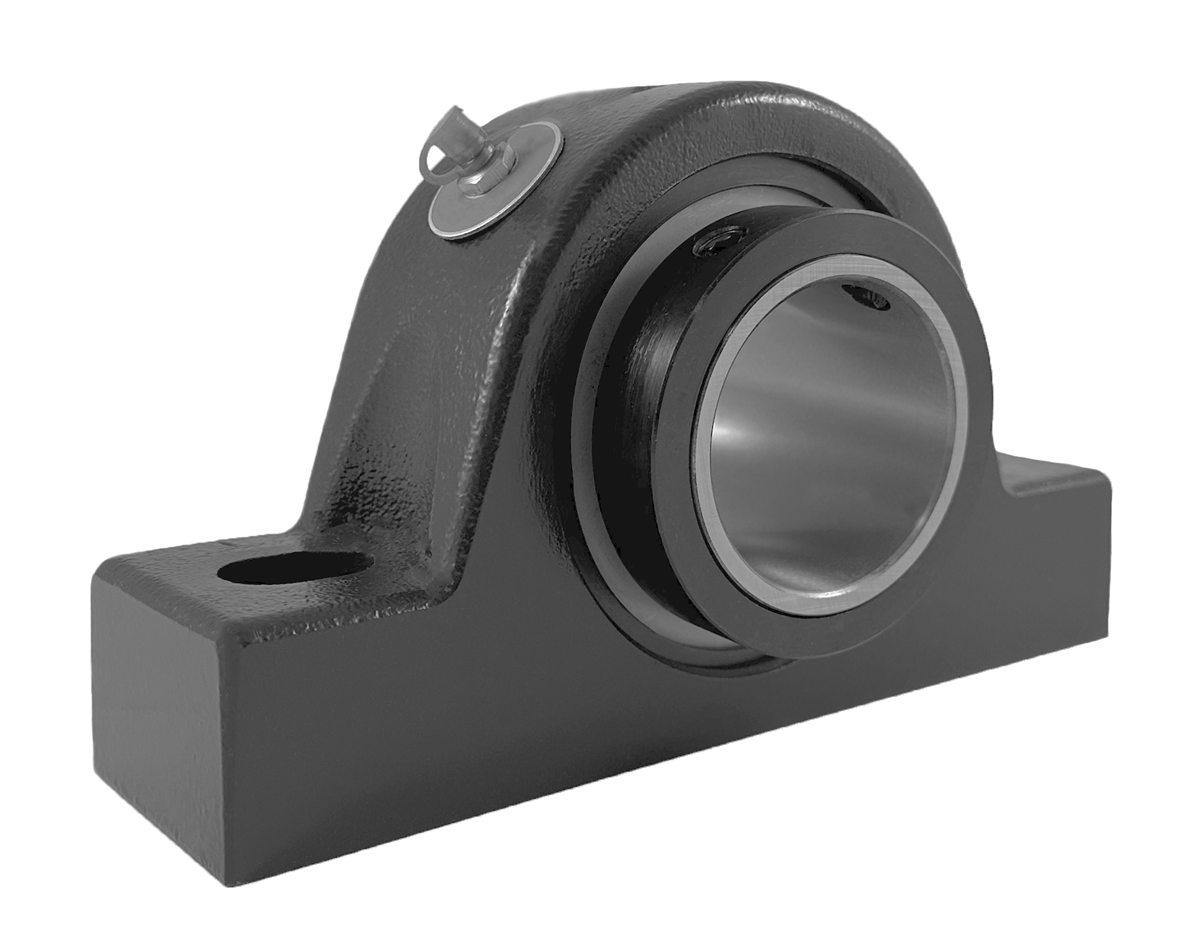

P2B-S2-208RE bearing is a two-bolt spherical pillow block expansion bearing unit with a 2-1/2" bore. Our directly interchanged SPB2-2-1/2TE pillow block bearing boasts superior construction and durability compared to other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. P2B-S2-208RE bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an SPB2-2-1/2TE interchange built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, this expansion unit has a high-strength mild steel collar for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SPB2-2-1/2TE bearings interchange with other brands such as Dodge P2B-S2-208RE, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our P2B-S2-208RE bearing replacement, contact our customer service team, and we will be happy to assist you!
P2B-S2-208RE Bearing Dimensions
- Part #: SPB2-2-1/2TE
- Interchanges With: P2B-S2-208RE
- Weight: 13.4 LBS
- Dimension (d): 2-1/2"
- Dimension (H): 2.750"
- Dimension (A): 9.250"
- Dimension (E-Min.): 6.813"
- Dimension (E-Max.): 7.438"
- Dimension (B): 2.563"
- Dimension (S): 0.750"
- Dimension (G): 1.750"
- Dimension (W): 5.688"
- Dimension (Z): 3.406" (+/- 0.050")
- Dimension (BL): 3.375"
- Dimension (K): 4.000"
- Dynamic Load Capacity (Cr): 37,630 LBS
- Dynamic Load Capacity (Cr): 167.4 kN
- Static Load Capacity (Cor): 46,960 LBS
- Static Load Capacity (Cor): 208.9 kN
Feature
- Directly Interchanges With P2B-S2-208RE Bearing
- Expansion Unit
- Advanced PTFE Seals
- Self-Aligning Bearing Unit
- Tough Mild-Steel Locking Collar
- Metal ID Tag For Easy Re-Order
- Solid High-Strength Housing With Precision Foot Ends
- Bearing Cavity 33% Filled With Shell Gadus S2 V220 Grease
- 1/8" NPT Grease Fitting
- Accepts Automatic Grease Dispensers
- Pressure Relief Valve
- Grease Purge Valve Protects Seals From Over Lubrication
- Part #: SPB2-2-1/2TE
- Interchanges With: P2B-S2-208RE
- Weight: 13.4 LBS
- Dimension (d): 2-1/2"
- Dimension (H): 2.750"
- Dimension (A): 9.250"
- Dimension (E-Min.): 6.813"
- Dimension (E-Max.): 7.438"
- Dimension (B): 2.563"
- Dimension (S): 0.750"
- Dimension (G): 1.750"
- Dimension (W): 5.688"
- Dimension (Z): 3.406" (+/- 0.050")
- Dimension (BL): 3.375"
- Dimension (K): 4.000"
- Dynamic Load Capacity (Cr): 37,630 LBS
- Dynamic Load Capacity (Cr): 167.4 kN
- Static Load Capacity (Cor): 46,960 LBS
- Static Load Capacity (Cor): 208.9 kN
