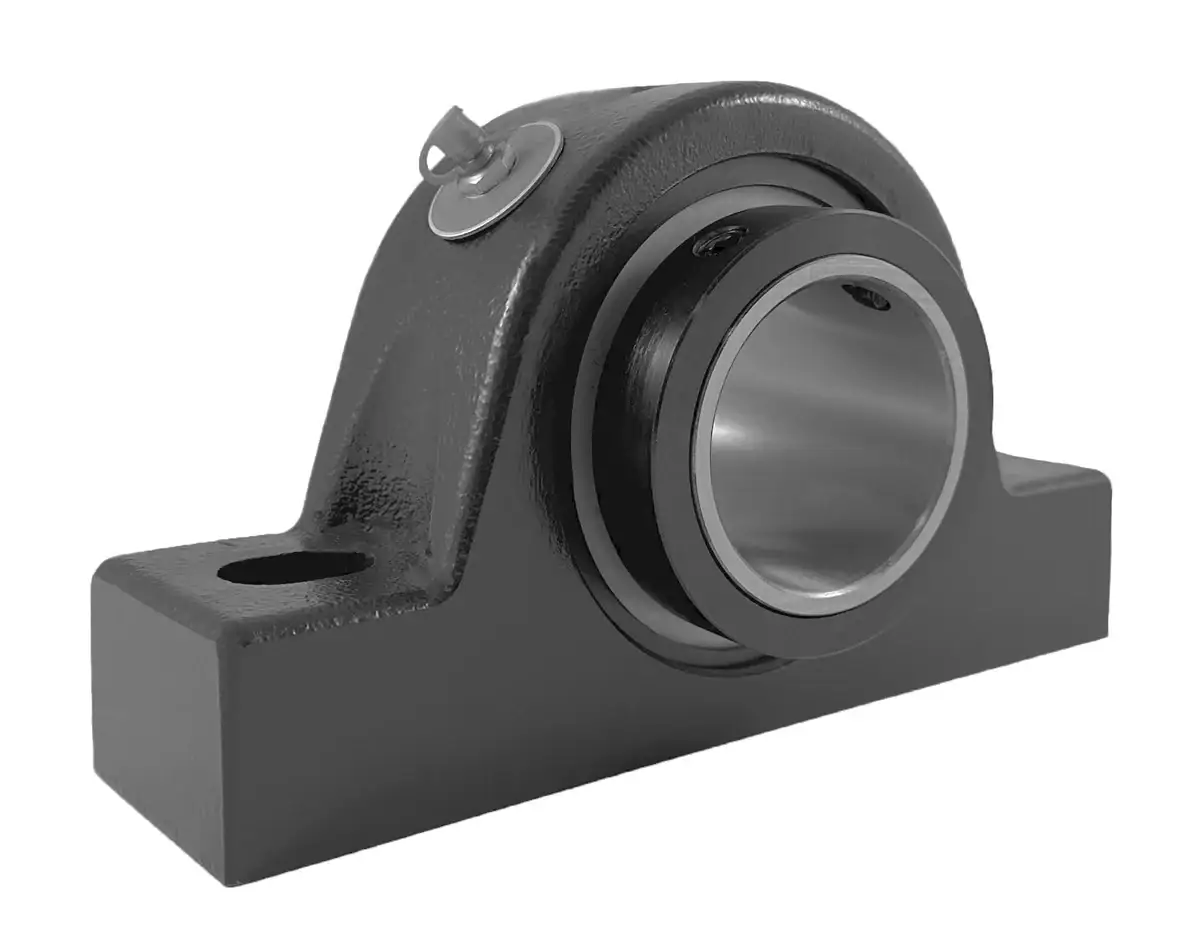

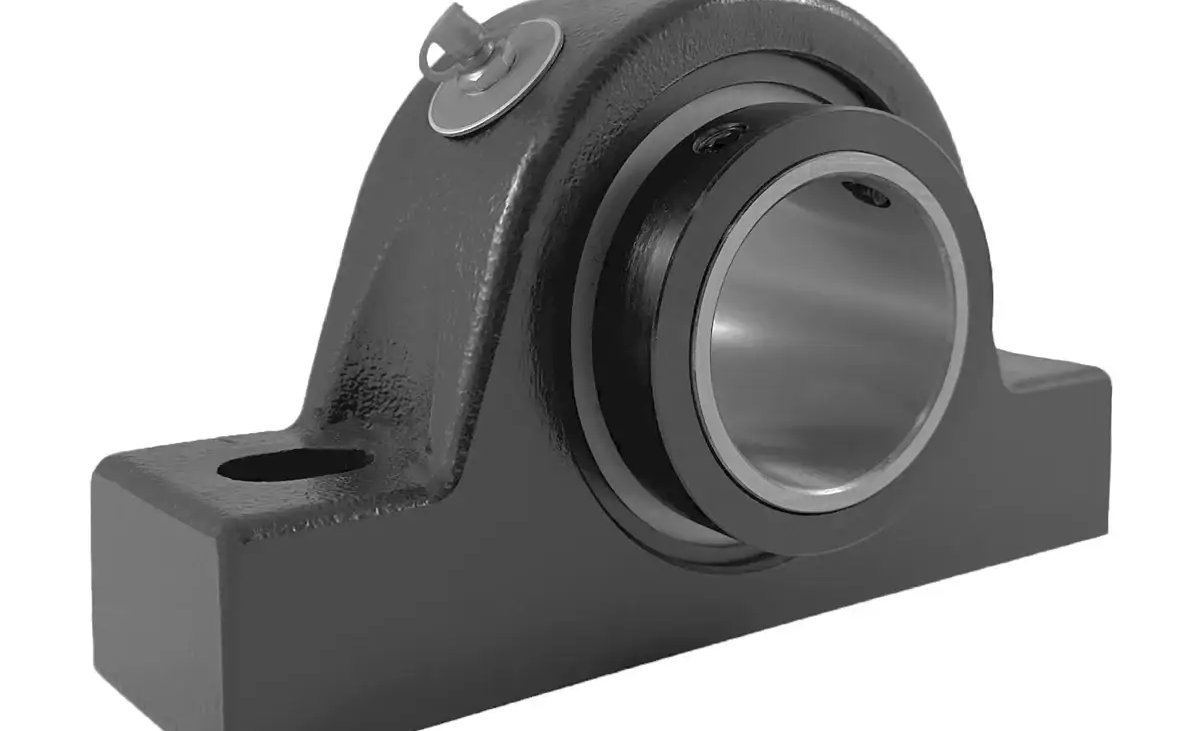

P2B-S2-208R Bearing | SPB2-2-1/2T Pillow Block Bearing

P2B-S2-208R bearing is a two-bolt spherical pillow block bearing unit with a 2-1/2" bore. Our directly interchanged SPB2-2-1/2T pillow block bearing boasts superior construction and durability compared to other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. P2B-S2-208R bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an SPB2-2-1/2T interchange built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, the unit has a high-strength mild steel collar for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SPB2-2-1/2T bearings interchange with other brands such as Dodge P2B-S2-208R, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our P2B-S2-208R bearing replacement, contact our customer service team, and we will be happy to assist you!

P2B-S2-208R Bearing Dimensions

• Part #: SPB2-2-1/2T
• Interchanges With: P2B-S2-208R
• Weight: 13.4 LBS
• Dimension (d): 2-1/2"
• Dimension (H): 2.750"
• Dimension (A): 9.250"
• Dimension (E-Min.): 6.813"
• Dimension (E-Max.): 7.438"
• Dimension (B): 2.563"
• Dimension (S): 0.750"
• Dimension (G): 1.750"
• Dimension (W): 5.688"
• Dimension (Z): 3.406"
• Dimension (BL): 3.375"
• Dimension (K): 4.000"
• Dynamic Load Capacity (Cr): 37,630 LBS
• Dynamic Load Capacity (Cr): 167.4 kN
• Static Load Capacity (Cor): 46,960 LBS
• Static Load Capacity (Cor): 208.9 kN
