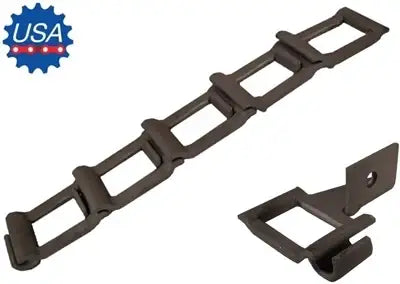

SCD #62 Chain With G27 Attachment Every 12.07" - 10.07FT Pair

Our bale elevator chain is manufactured using a high-strength #62 steel detachable chain that has an G27 attachment every 12.07" (7th link) and is supplied as a 10.07ft pair (two strands of chain) that is matched and tagged for even elevation and load carrying. What separates this chain from others is that it is manufactured using a special cold rolled steel that has been heat-treated for maximum strength and durability. The G27 attachments on this chain is designed with a moderate surface for pushing bales, they can also be used for welding or fastening slats onto them that will elevate the hay bale. Besides the chain we can also supply 62 series sprockets, the drive roller chains, motors, pulleys, and belts. For additional information or to get pricing and availability contact us and we will be happy to assist you.

Dimensions:

• Pitch (P): 1.654"
• Dimension (M): 1.563"
• Dimension (E): 1.002"
• Dimension (D): 0.984"
• Dimension (T): 0.148"
• Average Ultimate Strength: 4,200 LBS
• Chain Assembly Weight: 9.3 LBS
• Overall Length: 10.07FT
• Attachment Spacing: 12.07" (Every 7TH)
• Amount Of Attachments: 10
• Tolerance on Thickness: +/- 0.007"

G27 Attachment Dimensions

• Dimension (A): 1.313"
• Dimension (B): 1.063"
• Dimension (C): 0.688"
• Dimension (H): 1.063"
• Dimension (N): 0.266"
• Dimension (T): 0.148"
