Power Transmission > Electric Motors > IEEE841 Severe Duty Motors

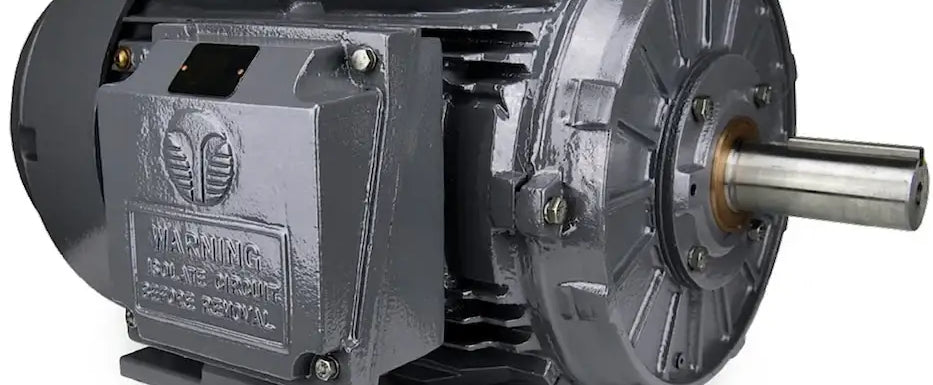

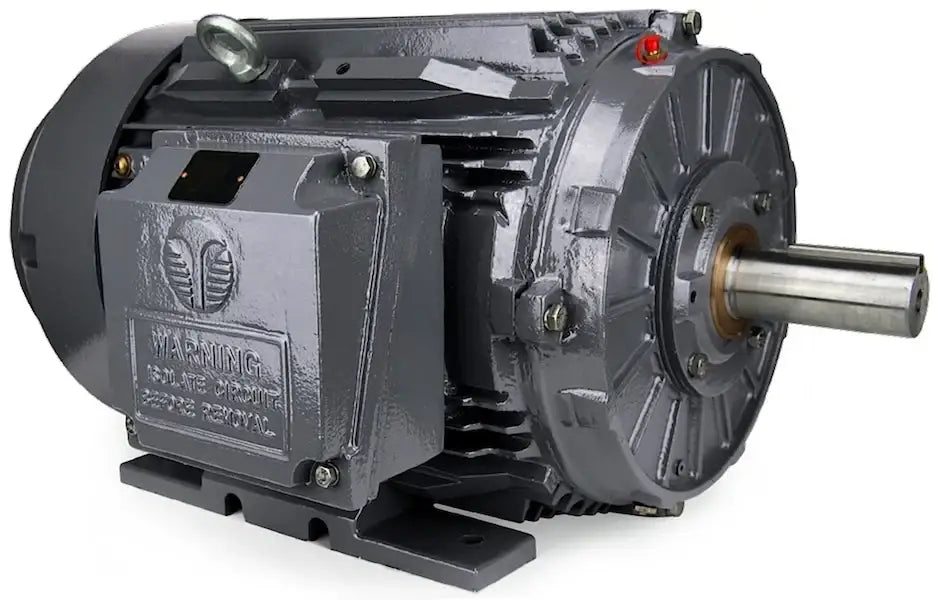

250 HP Severe Duty Motor 1800 RPM, C-Face, Ball Bearing
Note:
Custom Cut to Length Chain Also Available
$22,099.99
SKU: SD3-449T-4-BR-E-250-C-FACE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
250 HP Severe Duty Motor 1800 RPM, C-Face, Ball Bearing Features
250 HP Severe Duty Motor 1800 RPM, C-Face, Ball Bearing Specifications
This 250 HP severe-duty motor is intended for some of the world's most rugged and demanding electric motor applications. More specifically, the SD3-449T-4-BR-E-250 motor has a C-Face, is 1800 RPM, and utilizes a 449T frame size and high-strength ball bearings. This 250 horsepower severe duty motor is made per IEEE 841 Standards, which means that the motor contains special features designated by the Institute of Electrical and Electronic Engineers to improve reliability, efficiency, and performance. This top-of-the-line 250 HP motor is also equipped with labyrinth seals, internal shaft grounding, class H silicone lead wires with fiberglass protectants, sintered brass breathers, and grease pressure reliefs. Putting this C-Face 449T 1800 RPM 250 HP electric motor above others within the same class! For more information or a quote on our premium SD3-449T-4-BR-E-250 severe duty motor, contact our customer service team, and we will gladly assist you!
250 HP Severe Duty Motor Specs
- Part Number: SD3-449T-4-BR-E-250
- Horsepower: 250
- Frame size: 449T
- RPM: 1800
- Poles: 4
- Voltage: 460V
- Body: T-Frame
- Part Number: SD3-449T-4-BR-E-250
- Horsepower: 250
- Frame size: 449T
- RPM: 1800
- Poles: 4
- Voltage: 460V
- Body: T-Frame
