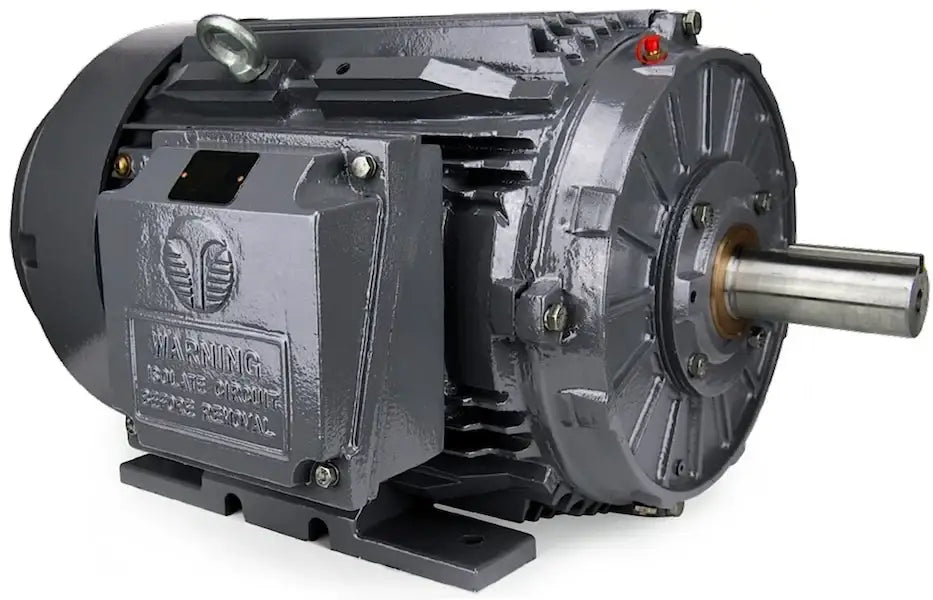

150 HP Severe Duty Motor 1800 RPM, C-Face, Ball Bearing

This 150 HP severe-duty motor is intended for some of the world's most rugged and demanding electric motor applications. More specifically, the SD3-445T-4-BR-E-150 motor has a C-Face, is 1800 RPM, and utilizes a 445T frame size and high-strength ball bearings. This 150 horsepower severe duty motor is made per IEEE 841 Standards, which means that the motor contains special features designated by the Institute of Electrical and Electronic Engineers to improve reliability, efficiency, and performance. This top-of-the-line 150 HP motor is also equipped with labyrinth seals, internal shaft grounding, class H silicone lead wires with fiberglass protectants, sintered brass breathers, and grease pressure reliefs. Putting this C-Face 445T 1800 RPM 150 HP electric motor above others within the same class! For more information or a quote on our premium SD3-445T-4-BR-E-1500 severe duty motor, contact our customer service team, and we will gladly assist you!

150 HP Severe Duty Motor Specs

• Part Number: SD3-445T-4-BR-E-150
• Horsepower: 150
• Frame size: 445T
• RPM: 1800
• Poles: 4
• Voltage: 460V
• Body: T-Frame

- Download Drawing

- Download Spec Sheet
