Power Transmission > Electric Motors > IEEE841 Severe Duty Motors
50 HP Severe Duty Motor 1200 RPM, Rigid Base, 365T Frame
Note:
Custom Cut to Length Chain Also Available
$7,199.99
SKU: SD3-365T-6-BR-E-50-RIGID
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
50 HP Severe Duty Motor 1200 RPM, Rigid Base, 365T Frame Features
50 HP Severe Duty Motor 1200 RPM, Rigid Base, 365T Frame Specifications

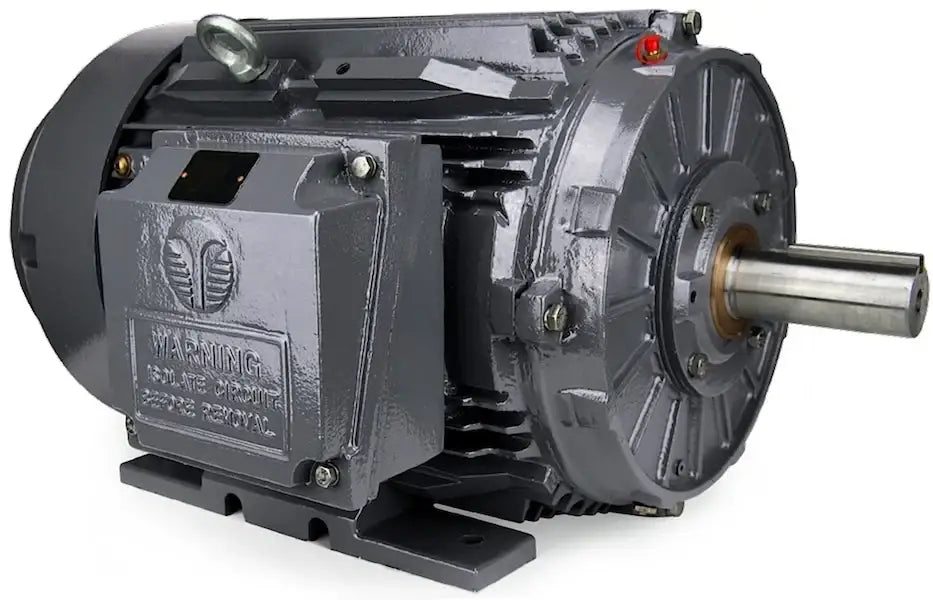

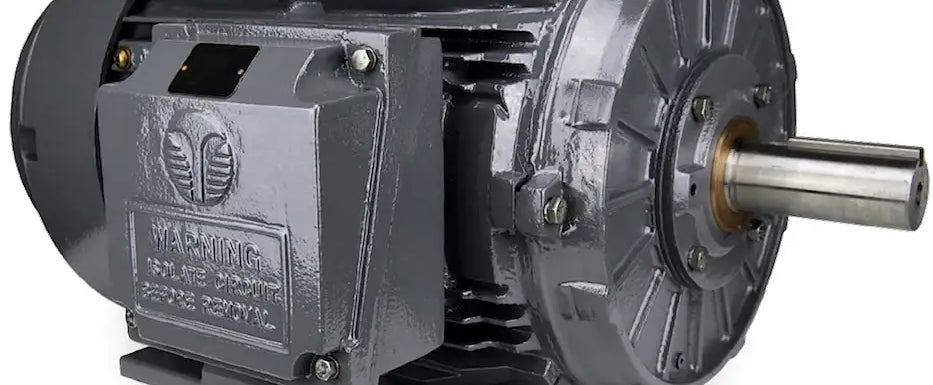

This 50 HP severe-duty motor is intended for some of the world's most rugged and demanding electric motor applications. More specifically, the SD3-365T-6-BR-E-50 motor has a rigid base, is 1200 RPM, and utilizes a 365T frame size and high-strength ball bearings. This 50 horsepower severe duty motor is made per IEEE 841 Standards, which means that the motor contains special features designated by the Institute of Electrical and Electronic Engineers to improve reliability, efficiency, and performance. This top-of-the-line 50 HP motor is also equipped with labyrinth seals, internal shaft grounding, class H silicone lead wires with fiberglass protectants, sintered brass breathers, and grease pressure reliefs. Putting this rigid base 365T 1200 RPM 50 HP electric motor above others within the same class! For more information or a quote on our premium SD3-365T-6-BR-E-50 severe duty motor, contact our customer service team, and we will gladly assist you!
50 HP Severe Duty Motor Specs
- Part Number: SD3-365T-6-BR-E-50
- Horsepower: 50
- Frame size: 365T
- RPM: 1200
- Poles: 6
- Voltage: 460V
- Body: T-Frame
- Part Number: SD3-365T-6-BR-E-50
- Horsepower: 50
- Frame size: 365T
- RPM: 1200
- Poles: 6
- Voltage: 460V
- Body: T-Frame
