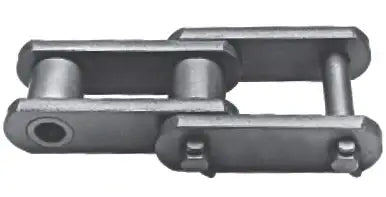

SBS150 Plus Chain

SBS150 Plus Chain

Note: Custom Cut to Length Chain Also Available
Product Code: SBS150-PLUS-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
SBS150 Plus Steel Bushed Chain Connecting Link (Master Link)
SBS150 Plus Steel Bushed Chain Connecting Link (Master Link)
Login
View full details
Description
Specification
This SBS150 chain is a high quality, high strength steel bushed chain that is extremely durable. SBS150 Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality SBS150 chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:
SBS150 Plus Chain
  • Chain Size: SBS150 Plus
  • Pitch: 6.050
  • Overall Width (A): 6.41"
  • Dimension (B): 3.38"
  • Dimension (C): 3.03"
  • Inside Width (E): 3.31"
  • Bushing Diameter (D): 1.75"
  • Bushing Style: Double Flat
  • Bushing Material: Alloy Case-Hardened
  • Pin Diameter (G): 1.00"
  • Pin Material: Alloy Case-Hardened
  • Pin Style: Double Flat
  • Sidebar Height (H): 2.50"
  • Sidebar Thickness (T): 0.50"
  • Sidebar Material: Carbon Heat-Treated
  • Average Ultimate Strength: 100,000 LBS
  • Maximum Working Load: 15,100 LBS
  • Weight Per Foot: 16.6 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
"Click Here To Checkout Our Line Card!"

Feature

  • High Quality Chain
  • Extremely Durable
  • High Resistance to Abrasion
  • Ultra High Strength
Featured image
  • Chain Size: SBS150 Plus
  • Pitch: 6.050
  • Overall Width (A): 6.41"
  • Dimension (B): 3.38"
  • Dimension (C): 3.03"
  • Inside Width (E): 3.31"
  • Bushing Diameter (D): 1.75"
  • Bushing Style: Double Flat
  • Bushing Material: Alloy Case-Hardened
  • Pin Diameter (G): 1.00"
  • Pin Material: Alloy Case-Hardened
  • Pin Style: Double Flat
  • Sidebar Height (H): 2.50"
  • Sidebar Thickness (T): 0.50"
  • Sidebar Material: Carbon Heat-Treated
  • Average Ultimate Strength: 100,000 LBS
  • Maximum Working Load: 15,100 LBS
  • Weight Per Foot: 16.6 LBS
