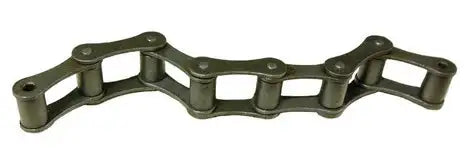

S77 Roller Chain - Agricultural Chain
Note:
Custom Cut to Length Chain Also Available
SKU: S77-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
S77 Roller Chain - Agricultural Chain Features
S77 Roller Chain - Agricultural Chain Specifications
S77 chain is manufactured to DIN8189 standards and is primary used in agricultural equipment. This S77 roller chain features solid rollers, heat treated components, and is supplied with a light high-quality lubricant for extended working life. For additional chain lubricant checkout our roller chain lubricant page! Besides S77 roller chain we also offer sprockets, attachments, bearings, shafting, motors, reducers and much more. For additional information or to get pricing please contact our customer support team and we will be happy to assist you.
S77 Chain Dimensions
- Pitch (P): 58.34mm
- Roller Diameter (d1): 18.26mm
- Width Between Inner Plates (b1): 22.23mm
- Pin Diameter (d2): 8.90mm
- Pin Length (L): 43.2mm
- Connecting Link Pin Length (Lc): 46.4mm
- Inner Plate Depth (h2): 26.2mm
- Plate Thickness (T): 4.0mm
- Tensile Strength: 14,612 LBS
- Weight Per Meter: 5.86 LBS
- Pitch (P): 58.34mm
- Roller Diameter (d1): 18.26mm
- Width Between Inner Plates (b1): 22.23mm
- Pin Diameter (d2): 8.90mm
- Pin Length (L): 43.2mm
- Connecting Link Pin Length (Lc): 46.4mm
- Inner Plate Depth (h2): 26.2mm
- Plate Thickness (T): 4.0mm
- Tensile Strength: 14,612 LBS
- Weight Per Meter: 5.86 LBS
