Reverse Barrel WD116 Chain Description/Features
Reverse Barrel WD116 Chain Specifications
WD116 reverse barrel chain features a large and wide pushing area, which gives it the capability of caring a sizable capacity when operating at low to even moderate speeds. It also features a reverse barrel design, which is extremely beneficial in short centered conveyors because it will drastically decrease the friction between the sprocket tooth and chain barrel which greatly increases the working life of the chain. WD116 welded steel reverse barrel chain is found in a wide range of applications including; conveyors, forest products, grain handling, heavy duty conveyors, pulp and paper industry, sugar processing, and more! This WD116 reverse barrel drag chain is engineered to be durable, reliable, and high strength. Then manufactured using a select grade of high quality alloy steels to provide a long working life with solid performance.

Reverse Barrel WD116 Chain

Dimensions:
Reverse Barrel WD116 Chain
  • Chain Size: WD116-RB
  • Pitch (P): 8.12"
  • Ultimate Strength: 59,000 LBS
  • Sidebar Height (H): 1.75"
  • Sidebar Thickness (S): 0.38"

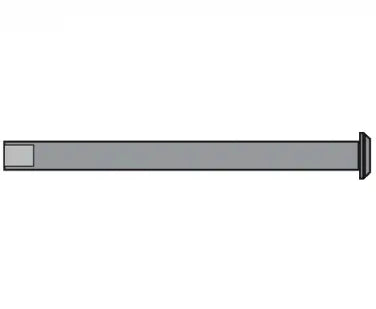

  • Pin Diameter (D6): 0.75"
  • Overall Width (F1): 15.50"
  • Length Of Bearing (B): 14.13"
  • Maximum Sprocket Thickness (L): 13.00"
  • Weight Per Foot: 18.50 LBS


Additionally, we offer a full line of high quality WD116 chain sprockets that exceed in quality, working life, and are supplied at remarkably great prices. We even supply custom made to order sprockets within a really great lead-time.

Reverse Barrel WD116 Chain


We also supply WD116 wing attachments along with the C 1/2 - C4 attachments and even the RR attachments, and have them assembled onto the chain in any configuration needed.

Reverse Barrel WD116 Chain


For pricing and availability on WD116 reverse barrel chain, sprockets, or attachments please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: WD116-RB
  • Pitch (P): 8.12"
  • Ultimate Strength: 59,000 LBS
  • Sidebar Height (H): 1.75"
  • Sidebar Thickness (S): 0.38"
  • Pin Diameter (D6): 0.75"
  • Overall Width (F1): 15.50"
  • Length Of Bearing (B): 14.13"
  • Maximum Sprocket Thickness (L): 13.00"
  • Weight Per Foot: 18.50 LBS
