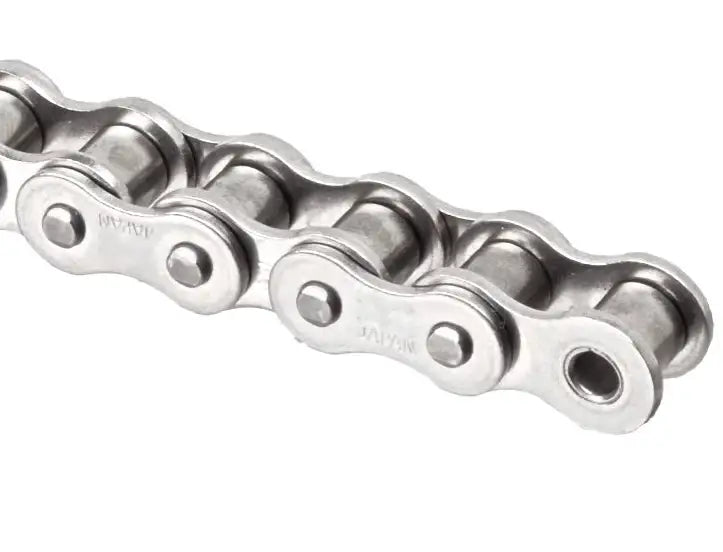

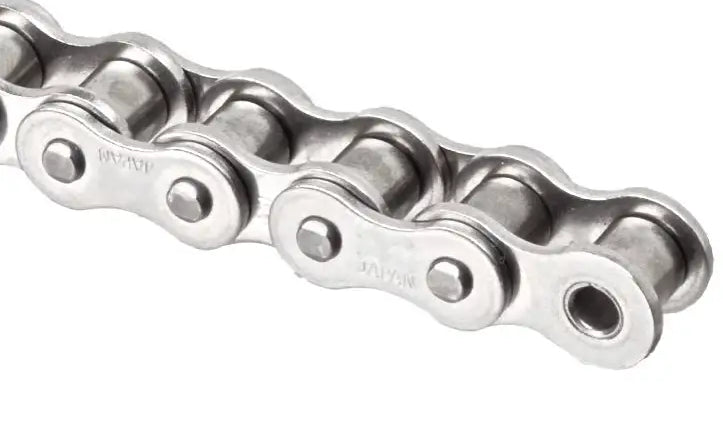

Premium 41 Stainless Steel Roller Chain 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Premium 41 stainless steel roller chain is a 1/2" pitch ANSI chain designed for applications with limited space that are food-grade, corrosive, or abrasive. This 41 stainless steel roller chain sets the bar regarding performance, strength, and overall operating life. More specifically, our premium 41 stainless chain consists of highly precise components made from top-quality 304-grade stainless steel. The result is a smoother operating chain with enhanced performance. Typically, a 41SS stainless steel roller chain is found in food processing, gate operators, scientific, and packaging applications. 41 stainless steel roller chain is typically supplied in 10ft boxes, including one connecting link (master link), but we also offer reel lengths of 50ft and 100ft. Besides the chain, we also supply 41 stainless steel sprockets, attachments, and other accessories. For additional information or to get a quote on our premium 41 stainless steel roller chain, contact our customer service team, and we will gladly assist you!
41 Stainless Steel Chain Dimensions
- Part #: 41SS
- Pitch (P): 0.500"
- Roller Width (R): 0.250"
- Roller Diameter (D): 0.306"
- Overall Width (W): 0.583"
- Connecting Link Overall Width (X): 0.736"
- Plate Height (H): 0.390"
- Plate Thickness (T): 0.050"
- Pin Diameter (L): 0.141"
- Tensile Strength: 1,900 LBS
- Working Load: 76 LBS
- Weight Per Foot: 0.28 LBS
- Part #: 41SS
- Pitch (P): 0.500"
- Roller Width (R): 0.250"
- Roller Diameter (D): 0.306"
- Overall Width (W): 0.583"
- Connecting Link Overall Width (X): 0.736"
- Plate Height (H): 0.390"
- Plate Thickness (T): 0.050"
- Pin Diameter (L): 0.141"
- Tensile Strength: 1,900 LBS
- Working Load: 76 LBS
- Weight Per Foot: 0.28 LBS
