Roller Chain > Roller Chain by Size > 40 Roller Chain

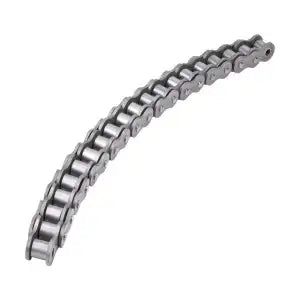

Premium 40 Side Bow Roller Chain 10ft Box
Note:
Custom Cut to Length Chain Also Available
$199.99
SKU: PREMIUM-40SB-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premium 40 Side Bow Roller Chain 10ft Box Features
Premium 40 Side Bow Roller Chain 10ft Box Specifications
Our premium 40 side bow roller chain sets the bar in terms of performance, strength, and operation life! 40 side bow roller chain is a unique 1/2" pitch ANSI chain designed to operate around radial curves. This #40 side bow chain is manufactured using precision high-grade carbon steel components that have been heat-treated and shot-peened. The result is a high-strength 40 side flexing chain with superior performance, working life, and a 3,510lb tensile strength. Additionally, 40 side bow roller chains can operate on standard 40 sprockets and are available in lengths of 10ft, 50, 100ft, or custom lengths. We also supply curved 40 chain guide tracks and sprockets! For additional information or to get a quote on our superior 40 side bow roller chain, contact our customer service team, and we will gladly assist you!
40 Side Bow Chain Dimensions
- Part #: 40SB
- Pitch (P): 0.500"
- Roller Width (W): 0.312"
- Roller Diameter (D): 0.312"
- Dimension (A): 0.333"
- Dimension (B): 0.391"
- Plate Height (H): 0.475"
- Plate Thickness (T): 0.058"
- Pin Diameter (E): 0.156"
- Tensile Strength: 3,510 LBS
- Working Load: 400 LBS
- Weight: 0.41 LBS/ FT
- Part #: 40SB
- Pitch (P): 0.500"
- Roller Width (W): 0.312"
- Roller Diameter (D): 0.312"
- Dimension (A): 0.333"
- Dimension (B): 0.391"
- Plate Height (H): 0.475"
- Plate Thickness (T): 0.058"
- Pin Diameter (E): 0.156"
- Tensile Strength: 3,510 LBS
- Working Load: 400 LBS
- Weight: 0.41 LBS/ FT
