Roller Chain > Roller Chain by Size > #35 Roller Chain

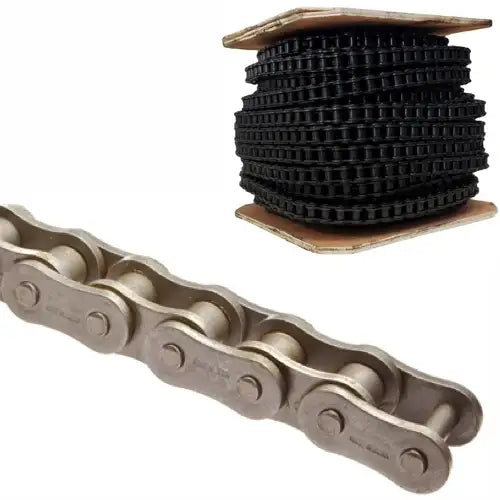

Premier Series #35 Roller Chain - 500ft Reel
Note:
Custom Cut to Length Chain Also Available
SKU: PRE-35RC-500FT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premier Series #35 Roller Chain - 500ft Reel Features
500ft reels of #35 chain are typically used for applications that require a long continuous length of chain or when smaller lengths are required and using long lengths reduce drop. Premier Series #35 roller chain is dimensionally manufactured to ANSI B29.1 Standards. This means that it will directly interchange with other ANSI certified roller chains and will operate properly on #35 chain sprockets. All Premier Series series roller chains are manufactured using the highest quality heat-treated, shot peened, and hardened high-precision components and are supplied with a premium lubricant already applied from the factory.
Premier Series #35 Roller Chain Dimensions
- Pitch (P): 0.375"
- Bushing Width (W): 0.188"
- Bushing Diameter (D): 0.200"
- Overall Width (A): 0.472"
- Plate Height (H): 0.354"
- Plate Thickness (T): 0.049"
- Pin Diameter (E): 0.141"
- Tensile Strength: 2,530 LBS
- Weight Per Foot: 0.21 LBS
