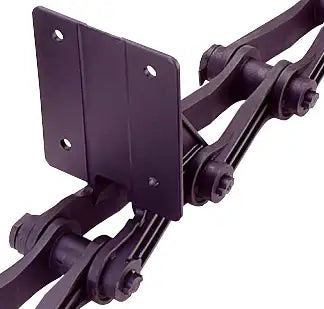

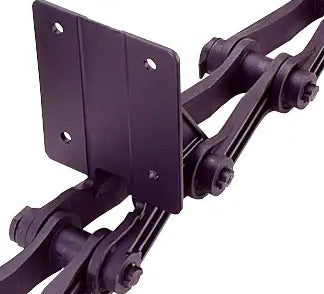

PM720S F228 Attachment

PM720S F228 Attachment is a plastic material attachment made for PM720S collector chain. The PM720S F228 attachment is made for 8" flights (also known as sludge flights), an 8" filler block, and is commonly accompanied with carry and return wear shoe parts. We can supply the PM720S plastic chain with F228 attachments in any configuration needed, along with the accompanying wear components and hardware. To get a quote on PM720S F228 Attachment links or PM720S chain with F228 attachments please contact us and we will be happy to assist you.

Helpful/ Recommended Tool:

We recommend that you purchase a wastewater chain tool when using plastic 700-series chains. This tool ensures proper installation of the chain and easy disassembly when it is time to replace the chain.

PM720S F228 Dimensions

• Chain Size: PM720S
• Attachment Type: F228
• Material: PM
• Pitch: 6.00"
• Overall Width: 3.438"
• Dimension (A): 3.75"
• Dimension (B): 4.50"
• Dimension (C): 2.375"
• Dimension (D): 0.375"
• Dimension (E): 7.875"
• Dimension (F): 5.625"
• Dimension (G): 3.00"
• Dimension (T): 0.313"
• Ultimate Tensile Strength: 6,000 LBS
• Rated Working Load: 2,600 LBS
• Weight: 1.34 LBS
