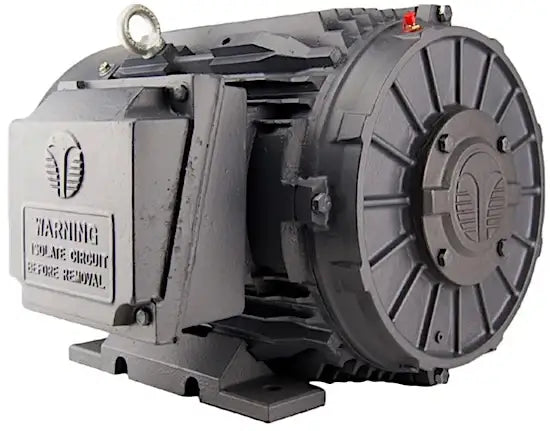

15 HP Rotary Phase Converter Motor - 3 Lead Single Voltage
Note:
Custom Cut to Length Chain Also Available
$1,079.99
SKU: PC3-CI-TF-254T-4-BR-B-15
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
15 HP Rotary Phase Converter Motor - 3 Lead Single Voltage Features
15 HP Rotary Phase Converter Motor - 3 Lead Single Voltage Specifications
Our premium 15 HP rotary phase converter motor with three lead single-voltage configurations is designated by part # PC3-CI-TF-254T-4-BR-B-15 and sets the bar in terms of performance, lifespan, and durability! Encapsulated in a high-strength IP55-rated cast iron housing that is totally enclosed and fan-cooled (TEFC), this 15 horsepower phase converter motor has dual oversized bearings, double-lip oil seals, one-way brass condensation drains, and an industry-leading 24-month warranty. The PC3-CI-TF-254T-4-BR-B-15 motor is also F1, F2, and F3 field convertible. For additional information or to get a quote from our customer service team on our premium 15 hp rotary phase converter motor, contact us today, and we will gladly assist you!
- Download Drawing
- Download Spec Sheet
15 HP Rotary Phase Converter Motor Specs
- Part #: PC3-CI-TF-254T-4-BR-B-15
- Horse Power: 15
- Frame Size: 254T
- Body: T
- Poles: 4
- RPM: 1800
- Voltage: 230
- Rating: IP55
- Weight: 278.94 LBS
- Download Drawing - Download Spec Sheet- Part #: PC3-CI-TF-254T-4-BR-B-15
- Horse Power: 15
- Frame Size: 254T
- Body: T
- Poles: 4
- RPM: 1800
- Voltage: 230
- Rating: IP55
- Weight: 278.94 LBS
