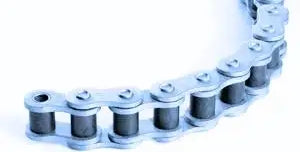

Coated John Deere AH131563 Chain - #50 X 116 Links
Note:
Custom Cut to Length Chain Also Available
$29.99
SKU: PC-50-116P-CTD-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
Coated John Deere AH131563 Chain - #50 X 116 Links Features
Coated John Deere AH131563 Chain - #50 X 116 Links Specifications

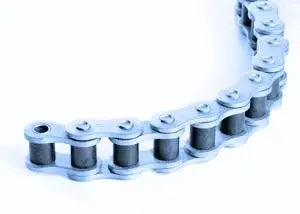

This anti-corrosive coated #50 planter chain replaces John Deere AH131563 chains and is 116 links long. It is manufactured dimensionally to ANSI B29.1 Standards but features heat-treated components, a high-performance solid roller design, and an anti-corrosive coating to prevent rust over time. We use a high-quality ANSI roller chain because lower quality roller chains can result in an erratic movement which would cause inconsistent seed spacing. Additionally, using a coated roller chain will prevent rust and will hold up longer than non-coated roller chains.
Helpful Tips:
AH131563 Specifications
- Chain Size: ANSI 50
- Length: 116-Links
- Strength: 6,620 LBS
- Pitch (P): 0.625"
- Plate Height (H): 0.594"
- Roller Diameter (D): 0.400"
- Plate Thickness (T): 0.079"
- Pin Diameter (E): 0.200"
- Roller Width (W): 0.375"
- Overall Width Including C/L (F): 0.852"
- Always inspect your roller chain before operation
- Keep chains well lubricated to ensure optimal performance
- Never use a rusted and or stiff roller chain
- Chain Size: ANSI 50
- Length: 116-Links
- Strength: 6,620 LBS
- Pitch (P): 0.625"
- Plate Height (H): 0.594"
- Roller Diameter (D): 0.400"
- Plate Thickness (T): 0.079"
- Pin Diameter (E): 0.200"
- Roller Width (W): 0.375"
- Overall Width Including C/L (F): 0.852"
