Specialty Chain > Pan Conveyor Chain

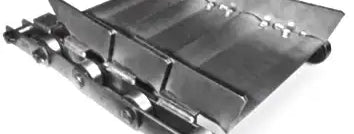

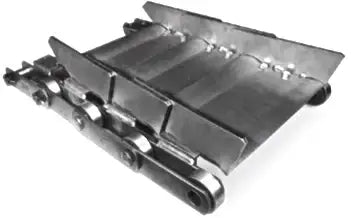

P250350 Pan Conveyor Chain Assembly
Note:
Custom Cut to Length Chain Also Available
SKU: P250350-PAN-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
P250350 Pan Conveyor Chain Assembly Features
P250350 Pan Conveyor Chain Assembly Specifications
P250350 Pan Conveyor Chain is an outboard style chain that is manufactured using premium quality metallurgy and different heat-treatments equating to high performance and durable conveyor chain. More specifically, the P250350 chain has a 250mm pitch and an average ultimate strength of 315 kN to withstand some of the most demanding applications in the world. We also supply sprockets for pan conveyor chains that are manufactured specifically for each application. To get a quote or for more information on P250350 pan conveyor chain or sprockets please contact us and we will be happy to assist you.
P250350 Pan Conveyor Chain Dimensions
- Chain Size: P250350
- Pitch (P): 250mm
- Average Ultimate Strength: 315 kN
- Dimension (L): 45mm
- Dimension (D4): 36mm
- Dimension (D6): 25mm
- Dimension (H): 65mm
- Dimension (T): 10mm
- Chain Size: P250350
- Pitch (P): 250mm
- Average Ultimate Strength: 315 kN
- Dimension (L): 45mm
- Dimension (D4): 36mm
- Dimension (D6): 25mm
- Dimension (H): 65mm
- Dimension (T): 10mm
