Power Transmission > Gears and Gear Racks > Metric Spur Gears and Metric Spur Gear Sizes
M2A95 Gear - M2A95 Metric Spur Gear
Note:
Custom Cut to Length Chain Also Available
SKU: N-7842-GE-M2A95
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
M2A95 Gear - M2A95 Metric Spur Gear Features
M2A95 Gear - M2A95 Metric Spur Gear Specifications

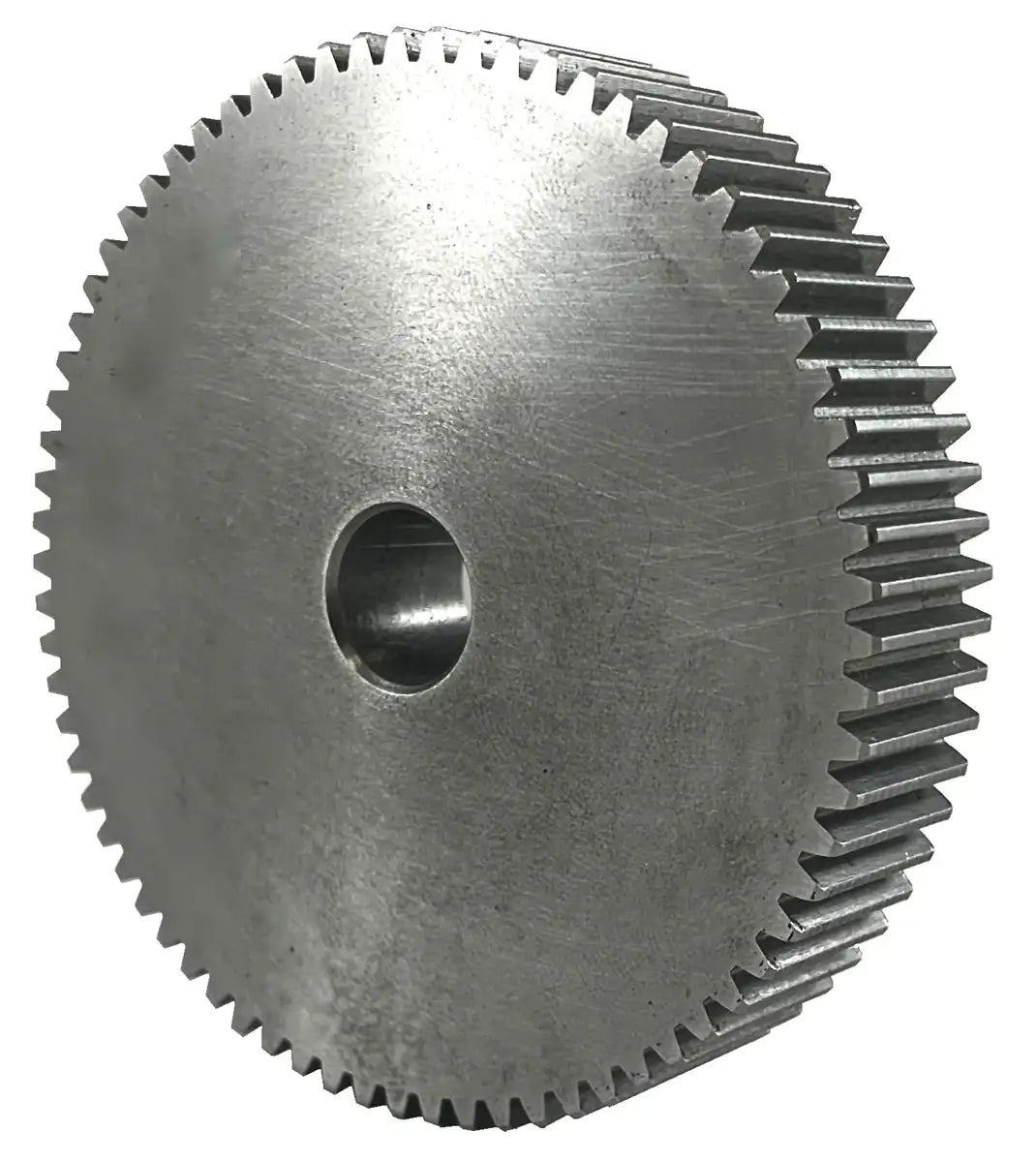

M2A95 spur gear is a module 2, 95-tooth plate type metric gear that is 194mm in diameter. Our M2A95 gear is manufactured using high-strength C1045 steel which is the optimal material for spur gears, it is manufactured to the standard metric dimensions so it interchanges with other brands, and can be supplied as a plain stock bore or finished out to a specific bore size upon request. We also supply metric gear rack for M2A95 gears, and high-grade gear oil to increase performance and longevity of the gear. For additional information or to get a quote on M2A95 metric spur gears please contact us as (407) 347-3519 or email sales@usarollerchain.com and we will be happy to assist you.
M2A95 Gear Dimensions
- Gear Size: M2A95
- Tooth Count: 95
- Dimension (De): 194mm
- Dimension (Dp): 190mm
- Dimension (D): 20mm
- Max Torque (Nm): 181.0
- Weight: 4.39 Kg
- Gear Size: M2A95
- Tooth Count: 95
- Dimension (De): 194mm
- Dimension (Dp): 190mm
- Dimension (D): 20mm
- Max Torque (Nm): 181.0
- Weight: 4.39 Kg
