Power Transmission > Gears and Gear Racks > Metric Spur Gear Rack

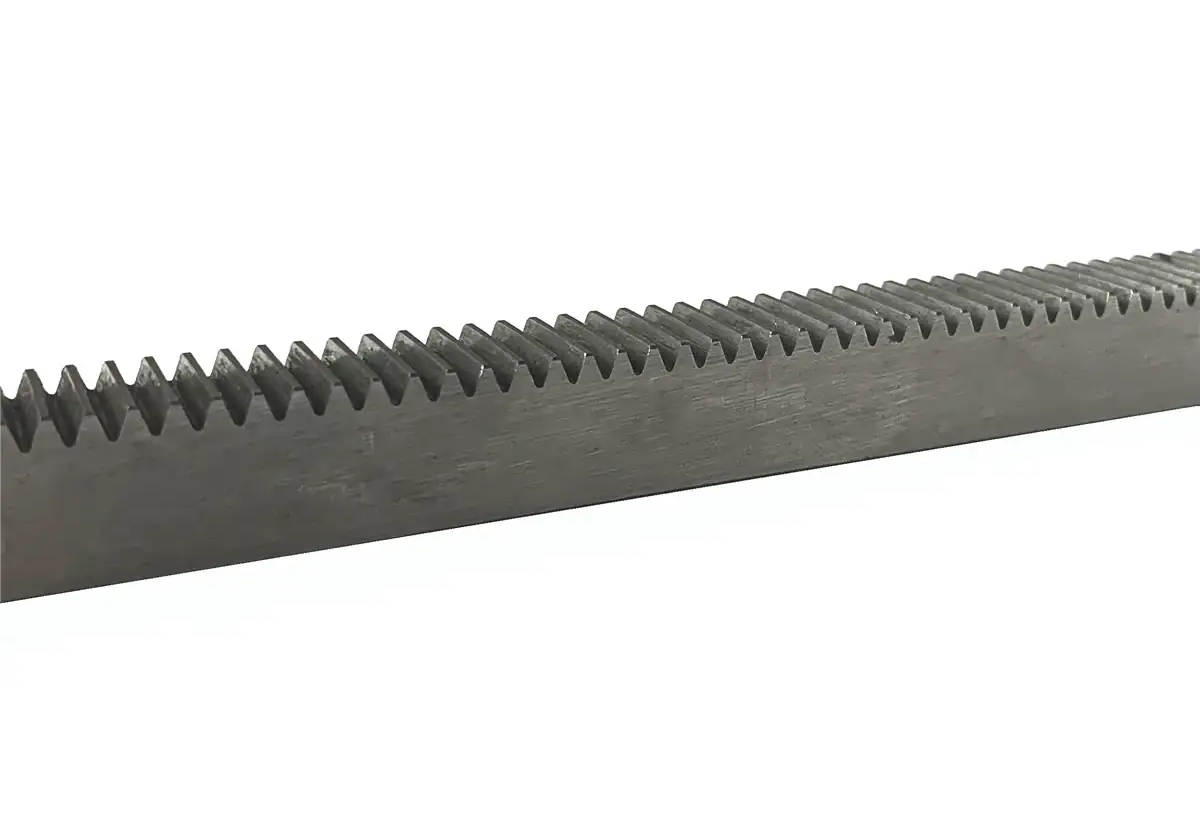

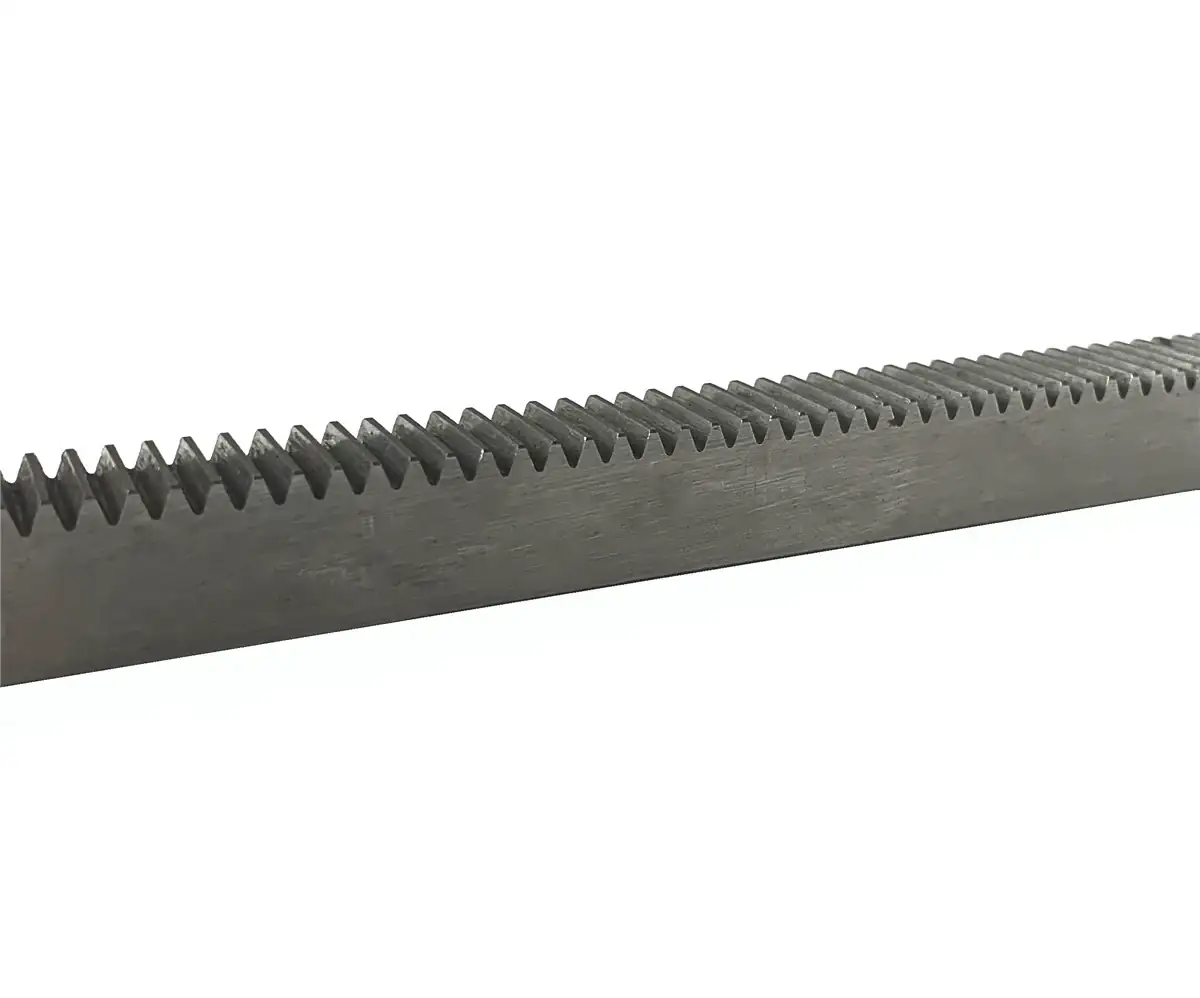

M1.5X17X500 Gear Rack | 500mm Metric Gear Rack
Note:
Custom Cut to Length Chain Also Available
SKU: N-7842-GE-M15X500
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
M1.5X17X500 Gear Rack | 500mm Metric Gear Rack Features
M1.5X17X500 Gear Rack | 500mm Metric Gear Rack Specifications
M1.5X17X500 gear rack is manufactured from premium C1045 steel to metric Module 1.5 dimensions and is 500mm in length. Our precision metric gear racks are designed to function smoother and longer than the other brands out there. For more information or to get a quote for M1.5X500 metric gear rack please contact us and we will be happy to assist you.
M1.5X17X500 Gear Rack Dimensions
- Part #: M1.5X500
- Dimension (hp): 15.5mm
- Dimension (he X S): 17mm X 17mm
- Weight: 1.00 kG
- Pitch: 4.7124mm
- Dimension (S): 0.6mm
- Amount of Teeth: 106
- Dimension (Lr): 499.51mm
- Part #: M1.5X500
- Dimension (hp): 15.5mm
- Dimension (he X S): 17mm X 17mm
- Weight: 1.00 kG
- Pitch: 4.7124mm
- Dimension (S): 0.6mm
- Amount of Teeth: 106
- Dimension (Lr): 499.51mm
