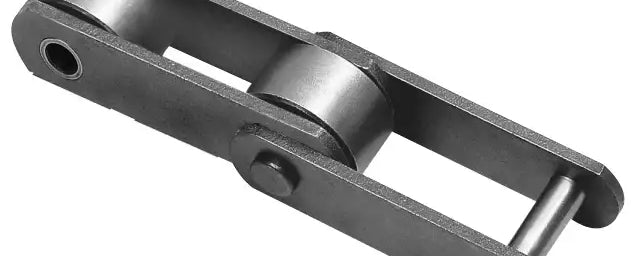

MXR2085 Chain

Specialty Chain > Engineering Class Chains > Roller Conveyor Chain > MXR2085 Roller Chain

MXR2085 Chain

Note: Custom Cut to Length Chain Also Available
SKU: MXR2085-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715266576751" , "metafield_value":""}]
MXR2085 Chain Features
MXR2085 Chain Specifications
MXR2085 Chain is a roller conveyor chain that is manufactured to specific specifications and standards throughout the industry. This MXR2085 Chain features premium solid components that have been engineered and manufactured to have high strength, a long working life, and great performance. Each component has either been heat-treated or hardened to increase the strength and working life of the chain. USA Roller Chain and Sprockets is a one-stop one-shop facility meaning you can get everything you need from one place. We also offer a full line of high quality MXR2085 sprockets with very short lead-times. For more information or to get a quote on MXR2085 roller conveyor chain please contact us and one of our highly-trained customer service staff will be happy to assist you!

Dimensions:
MXR2085 Chain
  • Chain #: MXR2085
  • Pitch: 2.000"
  • Pin Diameter (E): 0.558"
  • Overall Width Cottered (C2): 2.50"
  • Sidebar Height (H): 1.57"
  • Roller Diameter (D): 1.00"
  • Sidebar Thickness (T): 0.25"
  • Distance Between Sidebars (W): 1.00"
  • Length Of Bushing (X): 1.50"
  • Average Ultimate Strength: 20,000 LBS
  • Maximum Recommended Working Load: 2,930 LBS
  • Links Per 10ft: 60
  • Weight Per Foot: 6.1 LBS
  • Pin Material: Heat-Treated Alloy Steel
  • Bushing Material: Case-Hardened Carbon Steel
  • Roller Material: Heat-Treated Alloy Steel
  • Sidebar Material: Heat-Treated Carbon Steel
  • Style: 2
