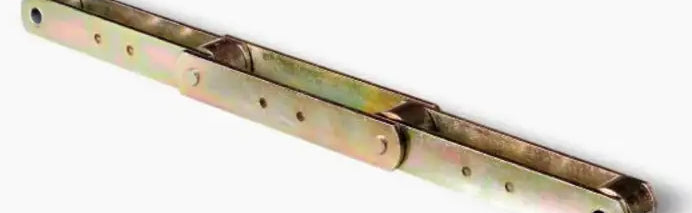

M630B250 Chain
Buy it With:
M630B250 chain is a metric conveyor chain that is manufactured to ISO 1977 and DIN 8167 specifications. M series chains are some of the most universally used chains in the world, therefore this series caters for most mechanical handling requirements. This chain is supplied with an B style roller but additional styles and roller types are available upon request. A few things that sets our M630B250 chain apart from others is the heat treated components, precision manufacturing, and proven long term durability.
M630B250 Chain Dimensions
- Chain Size: M630B250
- Pitch (P): 250mm
- Average Weight: 35.28KG/M
- Roller Style: B
- Roller Diameter: 140mm
- Pin Diameter (D6): 36mm
- Overall Width (F1): 137mm
- Dimension (F2): 75mm
- Bushing Diameter (D45): 50mm
- Dimension Between Sidebars (L): 67mm
- Sidebar Thickness (S): 14mm
- Sidebar Height (H): 100mm
Although this chain is comparable to DIN 8165 chains, it does not interchange with other precision chain standards. In addition to the chain we also have a full line of M630B250 sprockets and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.
Email:
- Chain Size: M630B250
- Pitch (P): 250mm
- Average Weight: 35.28KG/M
- Roller Style: B
- Roller Diameter: 70mm
- Pin Diameter (D6): 36mm
- Overall Width (F1): 137mm
- Dimension (F2): 75mm
- Bushing Diameter (D45): 50mm
- Dimension Between Sidebars (L): 67mm
- Sidebar Thickness (S): 14mm
- Sidebar Height (H): 100mm
