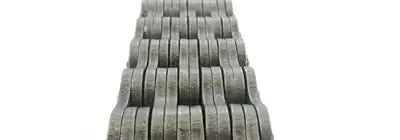

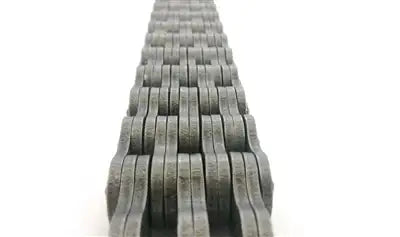

LH1666 Leaf Chain | 6X6 Chain 25.4mm Pitch - 10ft Box
Login to Request a Quote
Our LH1666 leaf chain is a heavy-duty chain that is designed to meet ANSI and ISO dimensional standards. It is a 6x6 lacing leaf chain that is engineered to handle higher load requirements than LL or AL series chains. Our LH1666 chain is made using high-grade carbon and alloy steel components, which are subjected to specific heat treatments to ensure exceptional performance and durability. The precision tolerances and factory pre-loading of our LH1666 chain further enhance its strength and reliability. The inclusion of extra plates in the LH1666 chain provides a fantastic cost-to-breaking strength ratio. Our LH1666 leaf chain is also directly interchangeable with other brands and manufacturers.
If you need additional information or would like to get a quote on the LH1666 chain, please contact our customer support team, and we will be happy to assist you!
LH1666 Chain Dimensions
- Chain Size: LH1666
- Lacing: 6X6
- Pitch (P): 25.40mm
- Pin Diameter (Dp): 9.51mm
- Plate Height (Hi): 24.00mm
- Plate Thickness (S): 3.95mm
- Pin Length (A1): 54.05mm
- Tensile Strength: 295.0 kN
- Weight: 7.20 Kg/m
- Chain Size: LH1666
- Lacing: 6X6
- Pitch (P): 25.40mm
- Pin Diameter (Dp): 9.51mm
- Plate Height (Hi): 24.00mm
- Plate Thickness (S): 3.95mm
- Pin Length (A1): 54.05mm
- Tensile Strength: 295.0 kN
- Weight: 7.20 Kg/m
