Specialty Chain > ANSI Leaf Chains > LH Series Leaf Chain

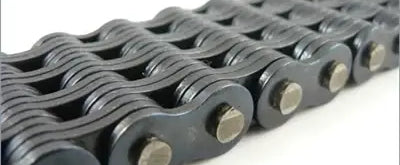

LH1288 Leaf Chain | LH1288 Chain - 8X8 Leaf Chain
Note:
Custom Cut to Length Chain Also Available
SKU: LH1288-LEAF-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
LH1288 Leaf Chain | LH1288 Chain - 8X8 Leaf Chain Features
LH1288 Leaf Chain | LH1288 Chain - 8X8 Leaf Chain Specifications
LH1288 leaf chain is manufactured to ANSI and ISO dimensional standards and is a 8X8 lacing leaf chain. LH series leaf chains are heavy-duty and designed for higher load requirements than LL or AL series chains. What separates our LH1288 chain from others is our use of high-grade carbon and alloy steel components, specific heat treatments, precision tolerances, and factory pre-loading. The combination creates an LH1288 leaf chain capable of exceptional performance and durability! LH1288 chain provides a fantastic cost-to-breaking strength ratio due to the inclusion of extra plates. Additionally, our LH1288 leaf chain directly interchanges with other brands and manufacturers. For additional information or to get a quote on the LH1288 chain, contact our customer support team, and we will be happy to assist you!
LH1288 Chain Dimensions
- Chain Size: LH1288
- Lacing: 8X8
- Pitch (P): 19.05mm
- Pin Diameter (Dp): 7.93mm
- Plate Height (Hi): 18.00mm
- Plate Thickness (S): 3.25mm
- Chain Size: LH1288
- Lacing: 8X8
- Pitch (P): 19.05mm
- Pin Diameter (Dp): 7.93mm
- Plate Height (Hi): 18.00mm
- Plate Thickness (S): 3.25mm
