Specialty Chain > ANSI Leaf Chains > LH Series Leaf Chain

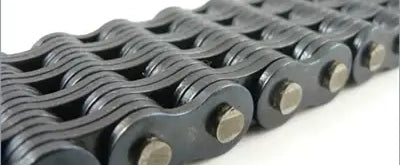

LH1088 Leaf Chain | LH1088 Chain - 8X8 Leaf Chain
Login to Request a Quote

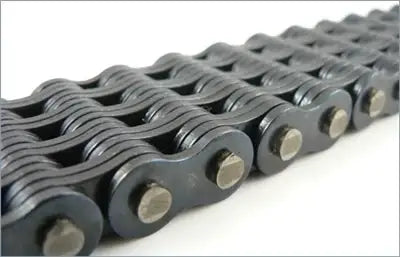

The LH1088 leaf chain adheres to ANSI and ISO dimensional standards, presenting a robust 8x8 lacing leaf chain solution. Tailored for heavy-duty applications, the LH series surpasses load requirements compared to LL or AL series chains. What distinguishes our LH1088 chain is the utilization of superior-grade carbon and alloy steel components, coupled with precise heat treatments, stringent tolerances, and factory pre-loading. This unique blend results in an LH1088 leaf chain that delivers outstanding performance and prolonged durability. The incorporation of extra plates enhances the cost-to-breaking strength ratio, making the LH1088 chain an economically efficient choice.
Our LH1088 leaf chain seamlessly interchanges with counterparts from different brands and manufacturers. For more details or to request a quote for the LH0823 chain, feel free to reach out to our customer support team. We are here to provide assistance and ensure your satisfaction!
LH1088 Chain Dimensions
- Chain Size: LH1088
- Lacing: 8X6
- Pitch (P): 15.875mm
- Pin Diameter (Dp): 5.94mm
- Plate Height (Hi): 14.75mm
- Plate Thickness (S): 2.40mm
- Chain Size: LH1088
- Lacing: 8X6
- Pitch (P): 15.875mm
- Pin Diameter (Dp): 5.94mm
- Plate Height (Hi): 14.75mm
- Plate Thickness (S): 2.40mm
